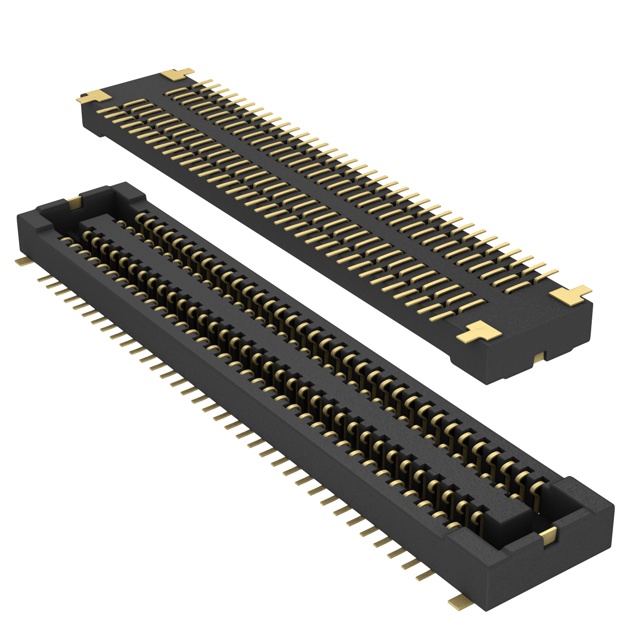

AXT570124

Active

Panasonic Electric Works

CONN SOCKET 70POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 70POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT570124

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.97 mm
Height Above Board	0.038 in
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Rows	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Features	Connector Type	Mated Stacking Heights
Panasonic Electric Works AXT570124A	2	0.97 mm	0.038 in	Surface Mount	0.016 in	0.4 mm	Gold	70	Solder Retention	Outer Shroud Contacts Socket	1 mm
Panasonic Electric Works AXT570124	2	0.97 mm	0.038 in	Surface Mount	0.016 in	0.4 mm	Gold	70	Solder Retention	Outer Shroud Contacts Socket	1 mm
