11910510F0701-GYL(R)

Active

GlobTek, Inc.

CORD 16AWG NEMA 5-15P-IEC320 10'

Search across all available documentation for this part.

Active

GlobTek, Inc.

CORD 16AWG NEMA 5-15P-IEC320 10'

Technical Specifications

Parameters and characteristics commom to parts in this series

CORD HOSP GRADE CRST 16/3SJT 10'

Part	Number of Conductors	Color	Wire Gauge	Cord Type	Approved Countries	Voltage Rating	Current Rating (Amps)	Approval Agency Marking	Length	Length	Operating Temperature	Features	Style	Shielding	1st Connector
GlobTek, Inc. 11910510F701/GY(R)	3	Gray	16 AWG	SJT	Canada, United States	125 VAC	13 A	CSA, UL	10 ft	3.05 m	60 °C	Hospital Grade	Female Sockets, Male Pins	Unshielded	NEMA 5-15P
GlobTek, Inc. 11910510F0701-GYL(R)	3	Gray	16 AWG	SJT	Canada, United States	125 VAC	13 A	CSA, UL	10 ft	3.05 m	105 C	Hospital Grade	Female Sockets, Male Pins	Unshielded	NEMA 5-15P

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

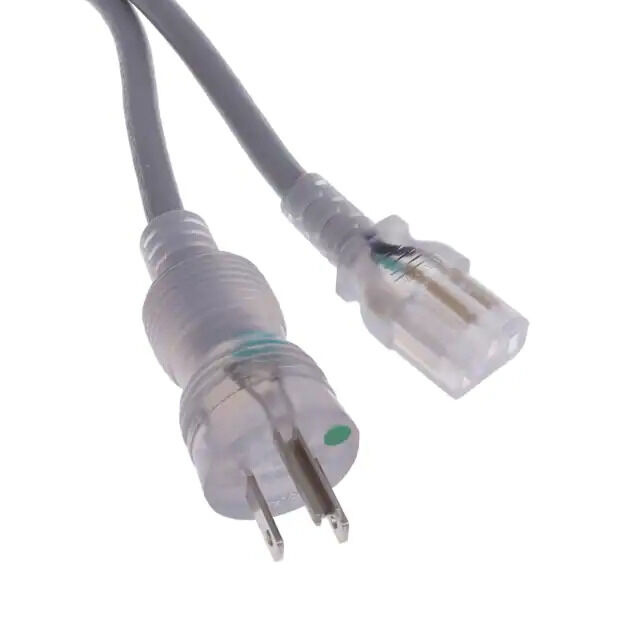

10.00' (3.05m) Power Cord Gray NEMA 5-15P To IEC 320-C13 SJT

Technical documentation and resources
