41-00001

Active

Amphenol CONEC

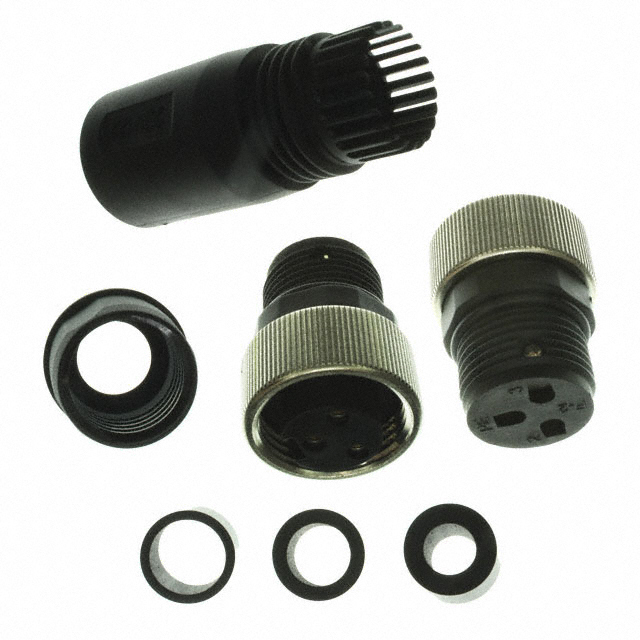

CONN PLUG FMALE 3POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

41-00001

Active

Amphenol CONEC

CONN PLUG FMALE 3POS GOLD SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	41-00001

Applications	Industrial, Automotive
Cable Opening [diameter]	0.236 in, 0.472 in
Cable Opening [diameter]	5.99 mm
Cable Opening [diameter]	11.99 mm
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	12 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic Polyurethane (TPU)
Material Flammability Rating	UL94
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	2
Number of Positions [custom]	3
Number of Positions [custom]	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA6), Nylon 6, Glass Filled
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VDC

41-0000 Series

Part	Contact Finish - Mating	Current Rating (Amps)	Primary Material	Shell Size - Insert	Material Flammability Rating	Contact Material	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Voltage Rating	Shell Material	Mounting Type	Connector Type	Orientation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Color	Termination	Features	Shielding	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol CONEC 41-00005	Gold	9 A	Plastic	7/8"-4	UL94	Copper Zinc	IP67 - Dust Tight Waterproof	0.236 in 0.472 in	5.99 mm	11.99 mm	250 VDC	Polyamide (PA6) Nylon 6 Glass Filled	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Automotive Industrial	85 °C	-40 °C	Thermoplastic Polyurethane (TPU)	Black	Screw	Backshell	Unshielded	4
Amphenol CONEC 41-00001	Gold	12 A	Plastic		UL94	Copper Zinc	IP67 - Dust Tight Waterproof	0.236 in 0.472 in	5.99 mm	11.99 mm	250 VDC	Polyamide (PA6) Nylon 6 Glass Filled	Free Hanging (In-Line)	Female Sockets Plug	Keyed	Automotive Industrial	85 °C	-40 °C	Thermoplastic Polyurethane (TPU)	Black Silver	Screw	Backshell Coupling Nut	Unshielded		2	3	1
Amphenol CONEC 41-00003	Gold	9 A	Plastic	7/8-5	UL94	Copper Zinc	IP67 - Dust Tight Waterproof	0.236 in 0.472 in	5.99 mm	11.99 mm	250 VDC	Polyamide (PA6) Nylon 6 Glass Filled	Free Hanging (In-Line)	Female Sockets Plug	Keyed	Automotive Industrial	85 °C	-40 °C	Thermoplastic Polyurethane (TPU)	Black Silver	Screw	Backshell Coupling Nut	Unshielded	5
Amphenol CONEC 41-00006	Gold	9 A	Plastic	7/8-5	UL94	Copper Zinc	IP67 - Dust Tight Waterproof	0.236 in 0.472 in	5.99 mm	11.99 mm	250 VDC	Polyamide (PA6) Nylon 6 Glass Filled	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Automotive Industrial	85 °C	-40 °C	Thermoplastic Polyurethane (TPU)	Black	Screw	Backshell	Unshielded	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.64
		10	$ 18.95
		25	$ 18.13
		50	$ 17.54
		100	$ 16.96
		250	$ 16.02
		500	$ 15.56

Description

General part information

41-0000 Series

3 (2 + PE) Position Circular Connector Plug, Female Sockets Screw
