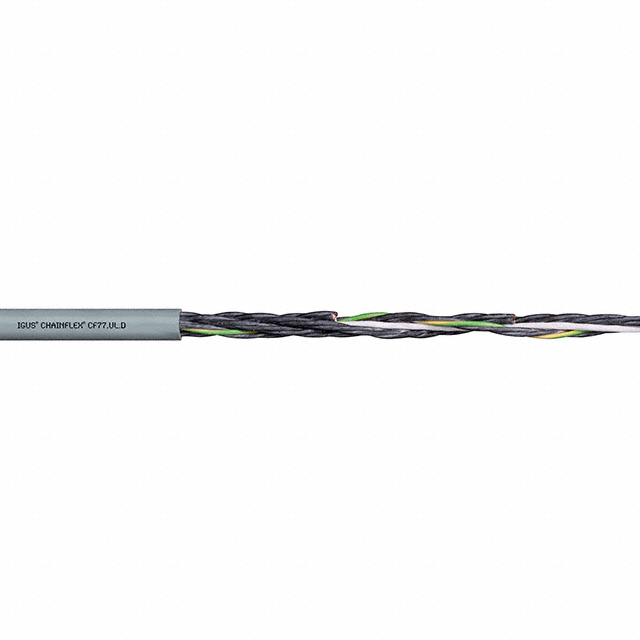

CF77-UL-10-07

Active

Igus

CABLE 7COND 17AWG GRAY FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF77-UL-10-07

Active

Igus

CABLE 7COND 17AWG GRAY FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CF77-UL-10-07

Cable Type	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Features	Flame Retardant, Oil Resistant, Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	0.354 in
Jacket (Insulation) Diameter [diameter]	8.99 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	7
Voltage	1000 V
Wire Gauge	17 AWG

CF77-UL Series

Part	Cable Type	Jacket Color	Jacket (Insulation) Material	Spool Size	Spool Size	Features	Number of Conductors	Wire Gauge	Voltage	Conductor Insulation	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Jacket (Insulation) Diameter [diameter]
Igus CF77-UL-25-12	Multi-Conductor	Gray	Polyurethane (PU)	1000 ft	304.8 m	Abrasion Resistant Flame Retardant Oil Resistant	12	13.5 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper Bare	0.669 "	16.99 mm	Enter Number of Feet in Order Quantity
Igus CF77-UL-15-04	Multi-Conductor	Gray	Polyurethane (PU)	1000 ft	304.8 m	Abrasion Resistant Flame Retardant Oil Resistant	4	16 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper Bare			Enter Number of Feet in Order Quantity
Igus CF77-UL-07-12	Multi-Conductor	Gray	Polyurethane (PU)	1000 ft	304.8 m	Abrasion Resistant Flame Retardant Oil Resistant	12	18 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper Bare	0.472 in	11.99 mm	Enter Number of Feet in Order Quantity
Igus CF77-UL-07-18	Multi-Conductor	Gray	Polyurethane (PU)	1000 ft	304.8 m	Abrasion Resistant Flame Retardant Oil Resistant	18	18 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper Bare	0.531 in	13.49 mm	Enter Number of Feet in Order Quantity
Igus CF77-UL-10-07	Multi-Conductor	Gray	Polyurethane (PU)			Abrasion Resistant Flame Retardant Oil Resistant	7	17 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper Bare	0.354 in	8.99 mm	Enter Number of Feet in Order Quantity
Igus CF77-UL-15-05	Multi-Conductor	Gray	Polyurethane (PU)	1000 ft	304.8 m	Abrasion Resistant Flame Retardant Oil Resistant	5	16 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper Bare	0.335 "	8.51 mm	Enter Number of Feet in Order Quantity
Igus CF77-UL-05-25	Multi-Conductor	Gray	Polyurethane (PU)	1000 ft	304.8 m	Abrasion Resistant Flame Retardant Oil Resistant	25	20 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper Bare		0.551 "	Enter Number of Feet in Order Quantity	13.99 mm
Igus CF77-UL-15-12	Multi-Conductor	Gray	Polyurethane (PU)	1000 ft	304.8 m	Abrasion Resistant Flame Retardant Oil Resistant	12	16 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper Bare		0.551 "	Enter Number of Feet in Order Quantity	13.99 mm
Igus CF77-UL-07-25	Multi-Conductor	Gray	Polyurethane (PU)	1000 ft	304.8 m	Abrasion Resistant Flame Retardant Oil Resistant	25	18 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper Bare	0.63 in	16 mm	Enter Number of Feet in Order Quantity
Igus CF77-UL-25-04	Multi-Conductor	Gray	Polyurethane (PU)	1000 ft	304.8 m	Abrasion Resistant Flame Retardant Oil Resistant	4	13.5 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper Bare	0.374 in	9.5 mm	Enter Number of Feet in Order Quantity

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.30
		500	$ 3.17
		1000	$ 3.05

Description

General part information

CF77-UL Series

7 Conductor Multi-Conductor Cable Gray 17 AWG Enter Number of Feet in Order Quantity
