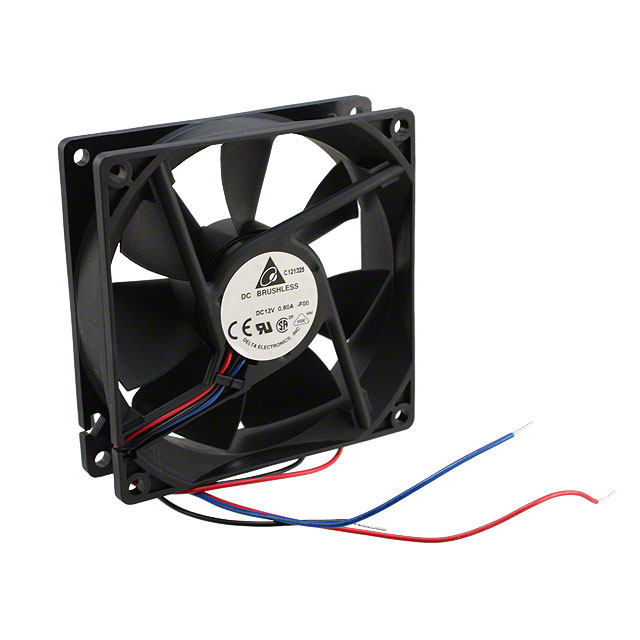

AFB0912VH-F00

Active

Delta Electronics

FAN AXIAL 92X25.4MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

AFB0912VH-F00

Active

Delta Electronics

FAN AXIAL 92X25.4MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0912VH-F00

Air Flow	67.8 CFM
Air Flow	1.9 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	400 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	45 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	4.8 W
RPM	3800 RPM
Static Pressure	75.2 Pa
Static Pressure	0.302 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.218 lb
Weight	98.88 g
Width [y]	25.4 mm

AFB0912 Series

Part	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	Termination	Noise	Air Flow	Air Flow	Width [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Bearing Type	Voltage - Rated	Lifetime @ Temp.	Approval Agency	Material - Frame	RPM	Current Rating (Amps)	Fan Type	Power (Watts)	Material - Blade	Width [y]	Features	Ingress Protection
Delta Electronics AFB0912LB	5 VDC	13.8 VDC	0.045 in H2O	11.2 Pa	2 Wire Leads	25 dB(A)	26.1 CFM	0.731 m³/min	15 mm	70 °C	70 °C	-10 °C	-10 °C	0.154 lb	69.85 g	Ball	12 VDC	70000 Hrs	CE CSA UL VDE	Plastic	1800 RPM	100 mA	Tubeaxial	1.2 W	Plastic
Delta Electronics AFB0912SH-AF00	5 VDC	12.6 VDC	0.526 in H2O	131 Pa	3 Wire Leads	53 dB	102.6 CFM	2.87 m³/min		70 °C	70 °C	-10 °C	-10 °C	0.267 lb	121.11 g	Ball	12 VDC	70000 Hrs	CE CSA UL VDE	Plastic	4800 RPM	750 mA	Tubeaxial	9 W	Plastic	25.4 mm	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0912L	7 V	13.8 VDC	0.1 in H2O	24.9 Pa	2 Wire Leads	25 dB(A)	37.1 CFM	1.04 mł/min		70 °C	70 °C	-10 °C	-10 °C	0.219 lb	99.34 g	Ball	12 VDC	70000 Hrs	CE CSA UL VDE	Plastic	2100 RPM	70 mA	Tubeaxial	840 mW	Plastic	25.4 mm
Delta Electronics AFB0912H-TA50	5 VDC	13.8 VDC	0.191 in H2O	47.6 Pa	2 Wire Leads	37 dB	59.9 CFM	1.68 mł/min		70 °C	70 °C	-10 °C	-10 °C	0.267 lb	121.11 g	Ball	12 VDC	70000 Hrs	CE CSA UL VDE	Plastic	2800 RPM	0.21 A	Tubeaxial	2.52 W	Plastic	25.4 mm		IP55 - Dust Protected Water Resistant
Delta Electronics AFB0912MB	5 VDC	13.8 VDC	0.079 in H2O	19.7 Pa	2 Wire Leads	32.5 dB	36.5 CFM	1.02 m³/min	15 mm	70 °C	70 °C	-10 °C	-10 °C	0.154 lb	69.85 g	Ball	12 VDC	70000 Hrs	CE CSA UL VDE	Plastic	2300 RPM		Tubeaxial	1.56 W	Plastic
Delta Electronics AFB0912LD-F00	7 V	13.8 VDC	0.084 in H2O	20.9 Pa	3 Wire Leads	28.5 dB(A)	41 CFM	1.15 mł/min		70 °C	70 °C	-10 °C	-10 °C	0.203 lb	92.08 g	Ball	12 VDC	70000 Hrs	CE CSA UL VDE	Plastic	2100 RPM		Tubeaxial		Plastic	20 mm	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0912LD	7 V	13.8 VDC	0.084 in H2O	20.9 Pa	2 Wire Leads	28.5 dB(A)	41 CFM	1.15 mł/min		70 °C	70 °C	-10 °C	-10 °C	0.203 lb	92.08 g	Ball	12 VDC	70000 Hrs	CE CSA UL VDE	Plastic	2100 RPM		Tubeaxial		Plastic	20 mm
Delta Electronics AFB0912VH-F00	7 V	13.8 VDC	0.302 in H2O	75.2 Pa	3 Wire Leads	45 dB(A)	67.8 CFM	1.9 m³/min		70 °C	70 °C	-10 °C	-10 °C	0.218 lb	98.88 g	Ball	12 VDC	70000 Hrs	CE CSA UL VDE	Plastic	3800 RPM	400 mA	Tubeaxial	4.8 W	Plastic	25.4 mm	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0912M	7 V	13.8 VDC	0.13 in H2O	32.4 Pa	2 Wire Leads	30 dB(A)	43.8 CFM	1.23 m³/min		70 °C	70 °C	-10 °C	-10 °C	0.218 lb	98.88 g	Ball	12 VDC	70000 Hrs	CE CSA UL VDE	Plastic	2450 RPM	110 mA	Tubeaxial	1.32 W	Plastic	25.4 mm
Delta Electronics AFB0912M-AF00	5 VDC	13.8 VDC	0.133 in H2O	33.1 Pa	3 Wire Leads	31.5 dB	49.5 CFM	1.39 m³/min		70 °C	70 °C	-10 °C	-10 °C	0.267 lb	121.11 g	Ball	12 VDC	70000 Hrs	CE CSA UL VDE	Plastic	2300 RPM	120 mA	Tubeaxial	1.44 W	Plastic	25.4 mm	Locked Rotor Protection Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.64
		10	$ 13.98
		25	$ 12.65
		72	$ 11.65
		144	$ 10.45
		288	$ 9.65
		504	$ 8.99

Description

General part information

AFB0912 Series

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 67.8 CFM (1.90m³/min) 3 Wire Leads
