DD-18BFFA-QL8MP0

Active

Amphenol LTW

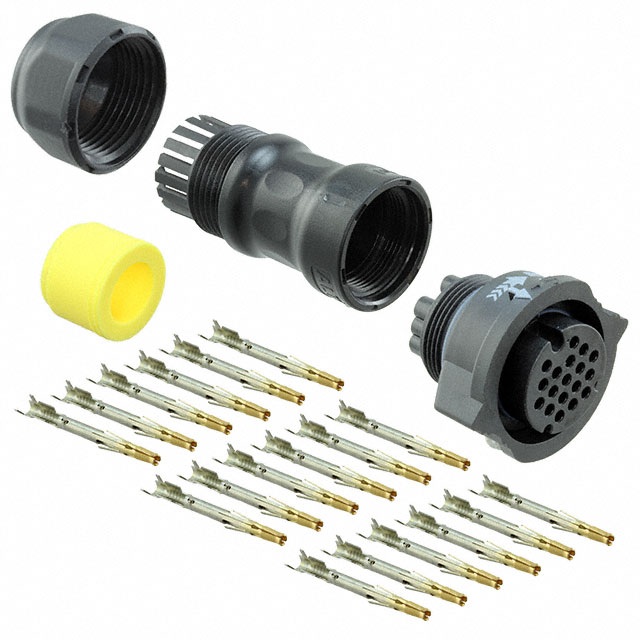

CONN PLUG FMALE 18POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DD-18BFFA-QL8MP0

Active

Amphenol LTW

CONN PLUG FMALE 18POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DD-18BFFA-QL8MP0

Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Termination	Crimp

DD-18BFFA Series

Part	Insert Material	Current Rating (Amps)	Color	Shielding	Connector Type	Backshell Material, Plating	Termination	Shell Size - Insert	Contact Finish - Mating	Contact Material	Number of Positions	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Type	Primary Material	Voltage Rating	Features	Fastening Type	Material Flammability Rating	Shell Material	Note	Contact Type	Contact Shape	Housing Color	Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Amphenol LTW DD-18BFFA-QL8AP0	Thermoplastic	5 A	Black	Unshielded	Female Sockets Plug	Thermoplastic	Crimp	D	Gold	Copper Alloy	18	Keyed	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic	300 VDC	Backshell
Amphenol LTW DD-18BFFA-QL8MP0	Polyamide (PA) Nylon Glass Filled	5 A	Black	Unshielded	Female Sockets Plug		Crimp	D	Gold	Copper Alloy	18	Keyed	-20 C	80 C	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic		Backshell Strain Relief	Push-Pull	UL94 V-0	Glass Filled Nylon Polyamide (PA)
Amphenol LTW DD-18BFFA-QL8AN0	Thermoplastic			Unshielded	Plug Housing			D			18	Keyed	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic		Backshell	Push-Pull			Contacts Not Included	Crimp	Circular	Black	For Female Sockets
Amphenol LTW DD-18BFFA-QL8MN0	Thermoplastic			Unshielded	Plug Housing			D			18	Keyed	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic		Backshell				Contacts Not Included	Crimp	Circular	Black	For Female Sockets
Amphenol LTW DD-18BFFA-QL8LP0	Polyamide (PA) Nylon Glass Filled	5 A	Black	Unshielded	Female Sockets Plug		Crimp	D	Gold	Copper Alloy	18	Keyed	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic	300 VAC	Backshell	Push-Pull	UL94 V-0	Glass Filled Nylon Polyamide (PA)						12 mm	14 mm	0.472 in	0.551 in
Amphenol LTW DD-18BFFA-LL7001		5 A	Black	Unshielded	Female Sockets Plug	Nylon Polyamide (PA)		D	Gold	Copper Alloy	18	Keyed	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic		Backshell Coupling Nut	Bayonet Lock		Glass Filled Nylon Polyamide (PA)
Amphenol LTW DD-18BFFA-QL8SP0	Polyamide (PA) Nylon Glass Filled	5 A	Black	Unshielded	Female Sockets Plug		Crimp	D	Gold	Copper Alloy	18	Keyed	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic	300 VAC	Backshell	Push-Pull	UL94 V-0	Glass Filled Nylon Polyamide (PA)						8 mm	10 mm	0.315 in	0.394 in
Amphenol LTW DD-18BFFA-QL8LN0	Thermoplastic			Unshielded	Plug Housing			D			18	Keyed	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic		Backshell				Contacts Not Included	Crimp	Circular	Black	For Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.80
		10	$ 10.46
		25	$ 10.06
		50	$ 9.65
		100	$ 9.12
		250	$ 8.31
		500	$ 7.78
		1000	$ 7.13

Description

General part information

DD-18BFFA Series

18 (Data) Position Circular Connector Plug, Female Sockets Crimp
