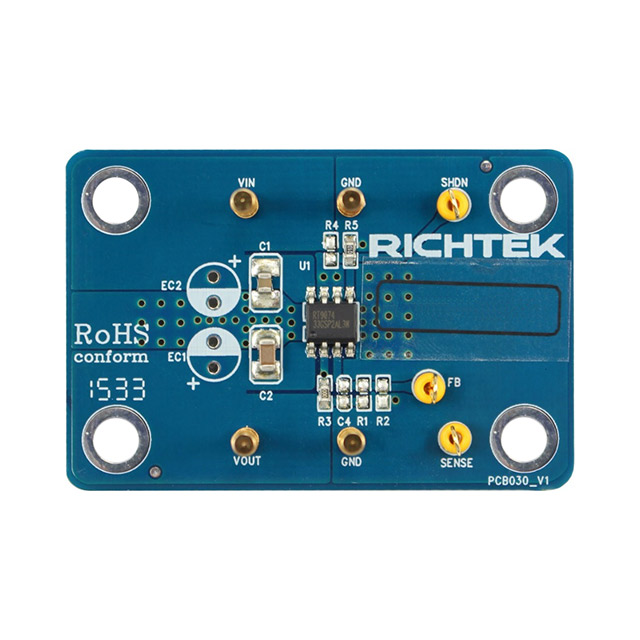

EVB_RT9074-33GSP

Active

Richtek USA Inc.

EVAL BOARD FOR RT9074

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL BOARD FOR RT9074

Technical Specifications

Parameters and characteristics for this part

Part	Channels per IC	Board Type	Supplied Contents	Contents	Current - Output	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Regulator Type	PSRR	Voltage Dropout (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Package / Case	Package / Case	Package / Case	Protection Features	Number of Regulators	Output Type	Voltage - Input (Max) [Max]	Supplier Device Package	Output Configuration	Control Features
Richtek USA Inc. EVB_RT9074-33GSP	1 - Single	Fully Populated	Board(s)	Board(s)	100 mA	3.3 V	60 V	4.5 V	RT9074	Positive Fixed
Richtek USA Inc. RT9074-33GSP					100 mA						60 dB	0.4 V	Surface Mount	85 °C	-40 °C	3.3 V	0.154 in	8-SOIC	3.9 mm	Over Current Over Temperature Reverse Polarity	1	1.81 mOhm	60 V	8-SOP-EP	Positive	Shutdown

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 45.02

General part information

RT9074 - 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board
