S6B-EH

Active

JST Sales America Inc.

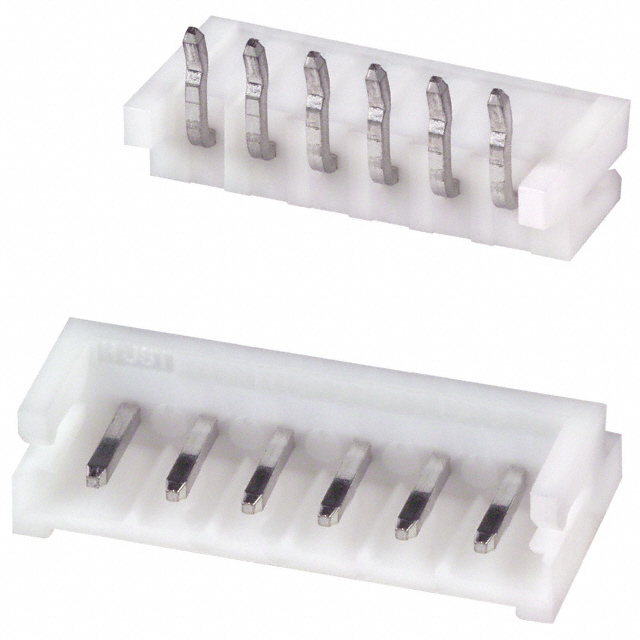

CONN HEADER R/A 6POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 6POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	S6B-EH

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock
Insulation Color	Natural
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Termination	Number of Rows	Contact Finish - Post	Insulation Material	Contact Type	Contact Length - Post	Contact Length - Post [x]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Current Rating (Amps)	Style	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Positions Loaded	Voltage Rating	Mounting Type	Contact Shape	Insulation Height [z]	Insulation Height [z]	Contact Material	Number of Positions	Shrouding
JST Sales America Inc. S6B-EH	2.5 mm	0.098 in	UL94 V-0	Press-Fit Solder	1	Tin	Polyamide (PA66) Nylon 6/6	Male Pin	3.2 mm	0.126 in	Header	-25 °C	85 °C	Latch Lock	3 A	Board to Cable/Wire	4 mm	0.157 in	Natural	All	250 VDC	Through Hole Right Angle	Square	0.165 in	4.2 mm	Brass	6	Shrouded - 3 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
