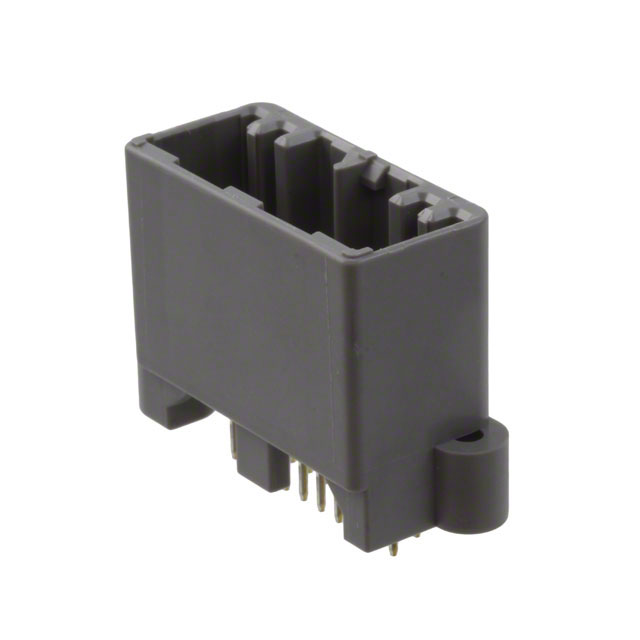

MX34020UF1
ActiveJAE Electronics
CONN HEADER VERT 20POS 2.2MM
Deep-Dive with AI
Search across all available documentation for this part.
MX34020UF1
ActiveJAE Electronics
CONN HEADER VERT 20POS 2.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MX34020UF1 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 7.7 mm |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Locking Ramp |
| Features | Mounting Flange |
| Insulation Color | Gray |
| Insulation Height | 23.5 mm |
| Insulation Height | 0.925 in |
| Mated Stacking Heights | 29.95 mm |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.087 in |
| Pitch - Mating | 2.2 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.07 | |
| 18 | $ 1.80 | |||
| 108 | $ 1.61 | |||
| 504 | $ 1.34 | |||
| 1008 | $ 1.15 | |||
| 5004 | $ 1.02 | |||
| 10008 | $ 1.00 | |||
Description
General part information
MX34020U Series
Connector Header Through Hole 20 position 0.087" (2.20mm)
