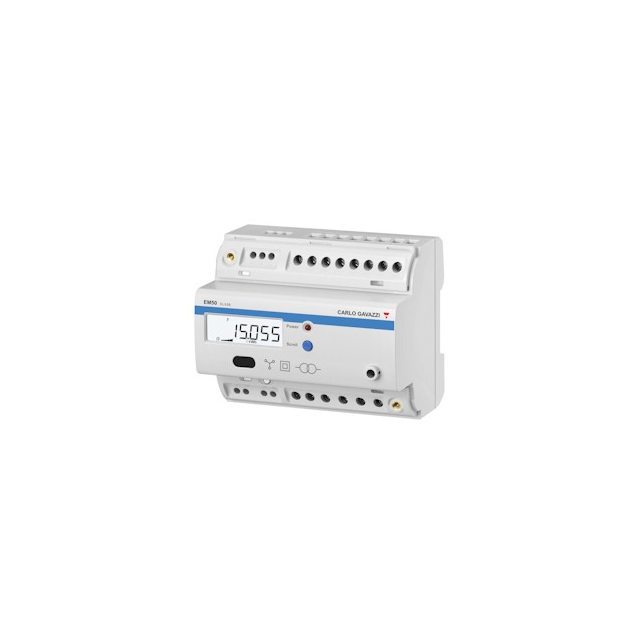

EM50DINRG53HRSX

Active

CARLO GAVAZZI

ENERGY METER 3-PHASE CLASS 05S

Search across all available documentation for this part.

Active

CARLO GAVAZZI

ENERGY METER 3-PHASE CLASS 05S

Technical Specifications

Parameters and characteristics for this part

Specification	EM50DINRG53HRSX

Display Characters - Height [y]	0.315 in
Display Characters - Height [y]	8 mm
Display Type	LCD - Black Characters, White Backlight
Ingress Protection	IP40
Measuring Range [Max]	600 V
Measuring Range [Min]	347 V
Measuring Type	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail
Number of Characters Per Row	7
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply [Max]	300 VDC, 415 VAC
Voltage - Supply [Min]	100 VAC, 100 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Measuring Range [Min]	Measuring Range [Max]	Type	Termination Style	Number of Characters Per Row	Display Characters - Height [y]	Display Characters - Height [y]	Display Type	Ingress Protection	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Type	Voltage - Supply	Measuring Range
CARLO GAVAZZI EM50DINRG53HRSX	-25 °C	75 ░C	347 V	600 V	Energy Monitor	Screw Terminal	7	0.315 in	8 mm	LCD - Black Characters White Backlight	IP40	DIN Rail	100 VAC 100 VDC	300 VDC 415 VAC	Current (3-Phase) Voltage Wattage
CARLO GAVAZZI EM50DINAV53HRSX	-25 °C	75 ░C	0.05 A 100 V	10 A 600 V	Energy Monitor	Screw Terminal	7	0.315 in	8 mm	LCD - Black Characters White Backlight	IP40	DIN Rail	100 VAC 100 VDC	300 VDC 415 VAC	Current (3-Phase) Voltage Wattage
CARLO GAVAZZI EM50DINMV53HRSX	-25 °C	75 ░C	0.8 mA 100 V	160 mA 600 V	Energy Monitor	Screw Terminal	7	0.315 in	8 mm	LCD - Black Characters White Backlight	IP40	DIN Rail	100 VAC 100 VDC	300 VDC 415 VAC	Current (3-Phase) Voltage Wattage
CARLO GAVAZZI EM50DINMA53HRSMC	-25 °C	75 ░C	347 V	600 V	Energy Monitor	Screw Terminal	7	0.315 in	8 mm	LCD - Black Characters White Backlight	IP40	DIN Rail			Current (3-Phase) Voltage Wattage	120 VAC	80 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Energy Monitor LCD - Black Characters, White Backlight Display DIN Rail
