MP24W23G10
ActiveAmphenol Sine Systems Corp

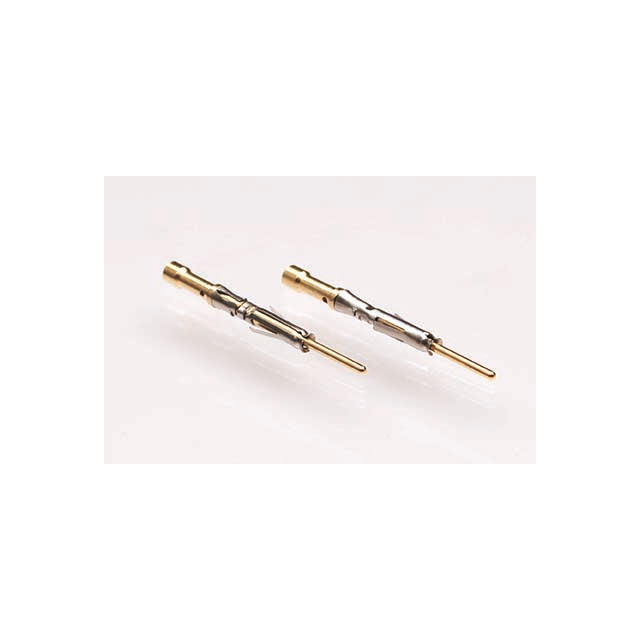

PIN CONTACT, MACHINED, GOLD 10U"
Deep-Dive with AI
Search across all available documentation for this part.
MP24W23G10
ActiveAmphenol Sine Systems Corp
PIN CONTACT, MACHINED, GOLD 10U"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP24W23G10 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Termination Finish | Nickel |
| Type | Machined |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 24 AWG |
| Wire Gauge or Range - mm˛ [Max] | 0.25 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.13 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.00 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.37 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.06 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.92 | |||
| 2500 | $ 0.84 | |||
Description
General part information
MP24 Series
Pin Contact 24-26 AWG Size 20 Crimp Gold
