Q-2N0360008009i

Active

Amphenol Custom Cable

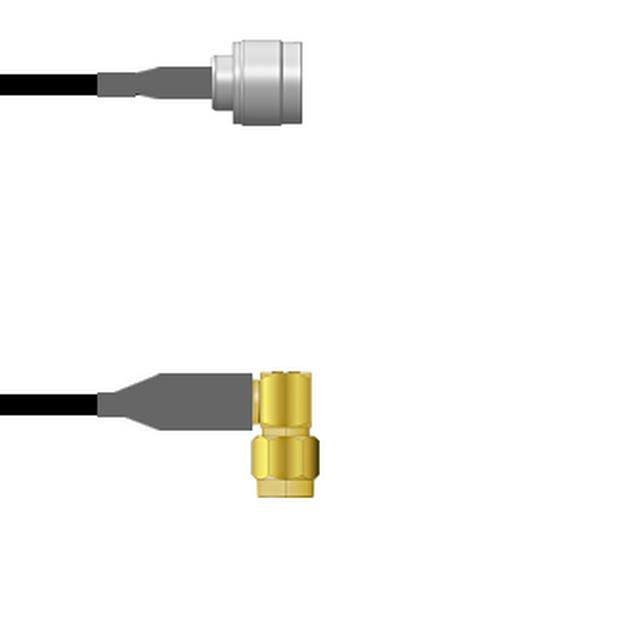

COAX CBL SMA TO N-TYPE 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2N0360008009i

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2N0360008009i

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2N0360 Series

Part	2nd Contact Gender	Cable Impedance	Overall Impedance	Features	Cable Type	Style	1st Connector Mounting Type	Length	Length	Connector Impedance	Frequency - Max [Max]	2nd Connector Mounting Type	2nd Connector	1st Connector	1st Contact Gender	Color	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2N0360008036i	Male	50 Ohms	50 Ohms	Shielded	RG-58	SMA to N-Type	Free Hanging (In-Line)	91.44 cm	36 in	50 Ohms	1 GHz	Free Hanging (In-Line)	N-Type Plug	Right Angle SMA Plug	Male	Black
Amphenol Custom Cable Q-2N0360008003M	Male	50 Ohms	50 Ohms	Shielded	RG-58	SMA to N-Type	Free Hanging (In-Line)	3 m	118.1 in	50 Ohms	1 GHz	Free Hanging (In-Line)	N-Type Plug	Right Angle SMA Plug	Male	Black	9.8 '
Amphenol Custom Cable Q-2N03600080.5M	Male	50 Ohms	50 Ohms	Shielded	RG-58	SMA to N-Type	Free Hanging (In-Line)	50 cm	19.69 "	50 Ohms	1 GHz	Free Hanging (In-Line)	N-Type Plug	Right Angle SMA Plug	Male	Black
Amphenol Custom Cable Q-2N0360008009i	Male	50 Ohms	50 Ohms	Shielded	RG-58	SMA to N-Type	Free Hanging (In-Line)	228.6 mm	9 "	50 Ohms	1 GHz	Free Hanging (In-Line)	N-Type Plug	Right Angle SMA Plug	Male	Black
Amphenol Custom Cable Q-2N0360008108i	Male	50 Ohms	50 Ohms	Shielded	RG-58	SMA to N-Type	Free Hanging (In-Line)	2.7 m	108 in	50 Ohms	1 GHz	Free Hanging (In-Line)	N-Type Plug	Right Angle SMA Plug	Male	Black	9 ft
Amphenol Custom Cable Q-2N0360008084i	Male	50 Ohms	50 Ohms	Shielded	RG-58	SMA to N-Type	Free Hanging (In-Line)	2.1 m	84 in	50 Ohms	1 GHz	Free Hanging (In-Line)	N-Type Plug	Right Angle SMA Plug	Male	Black	7 ft
Amphenol Custom Cable Q-2N0360008001M	Male	50 Ohms	50 Ohms	Shielded	RG-58	SMA to N-Type	Free Hanging (In-Line)	1 m	39.4 in	50 Ohms	1 GHz	Free Hanging (In-Line)	N-Type Plug	Right Angle SMA Plug	Male	Black	3.3 ft
Amphenol Custom Cable Q-2N0360008060i	Male	50 Ohms	50 Ohms	Shielded	RG-58	SMA to N-Type	Free Hanging (In-Line)	1.5 m	5 '	50 Ohms	1 GHz	Free Hanging (In-Line)	N-Type Plug	Right Angle SMA Plug	Male	Black	5 ft
Amphenol Custom Cable Q-2N0360008018i	Male	50 Ohms	50 Ohms	Shielded	RG-58	SMA to N-Type	Free Hanging (In-Line)			50 Ohms	1 GHz	Free Hanging (In-Line)	N-Type Plug	Right Angle SMA Plug	Male	Black		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2N0360008002F	Male	50 Ohms	50 Ohms	Shielded	RG-58	SMA to N-Type	Free Hanging (In-Line)	609.6 mm	24 "	50 Ohms	1 GHz	Free Hanging (In-Line)	N-Type Plug	Right Angle SMA Plug	Male	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 78.27
		25	$ 76.74
		50	$ 75.22
		100	$ 73.69
		250	$ 72.17

Description

General part information

Q-2N0360 Series

Cable Assembly Coaxial SMA to N-Type RG-58 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
