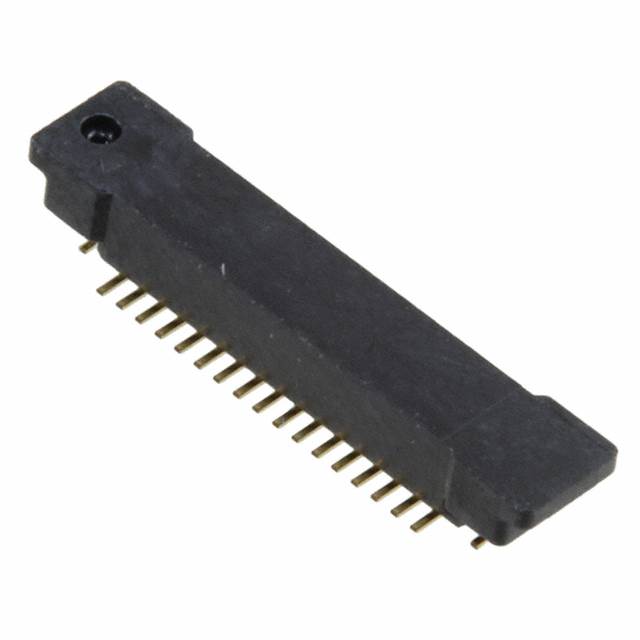

AXT434164

Active

Panasonic Electric Works

CONN HDR 34POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 34POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT434164

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.049 in
Height Above Board	1.25 mm
Mated Stacking Heights	2.5 mm, 1.5 mm
Mounting Type	Surface Mount
Number of Positions	34
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Mounting Type	Number of Positions	Number of Rows	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Connector Type
Panasonic Electric Works AXT434124	Solder Retention	Surface Mount	34	2	0.049 in	1.25 mm	0.016 in	0.4 mm	1.5 mm 2.5 mm	Gold	Header Center Strip Contacts
Panasonic Electric Works AXT434164	Solder Retention	Surface Mount	34	2	0.049 in	1.25 mm	0.016 in	0.4 mm	1.5 mm 2.5 mm	Gold	Header Center Strip Contacts
Panasonic Electric Works AXT434154	Board Guide Solder Retention	Surface Mount	34	2	0.049 in	1.25 mm	0.016 in	0.4 mm	1.5 mm 2.5 mm	Gold	Header Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Connector Header, Center Strip Contacts Surface Mount Gold
