MS220-10F

Active

Masach Tech Ltd.

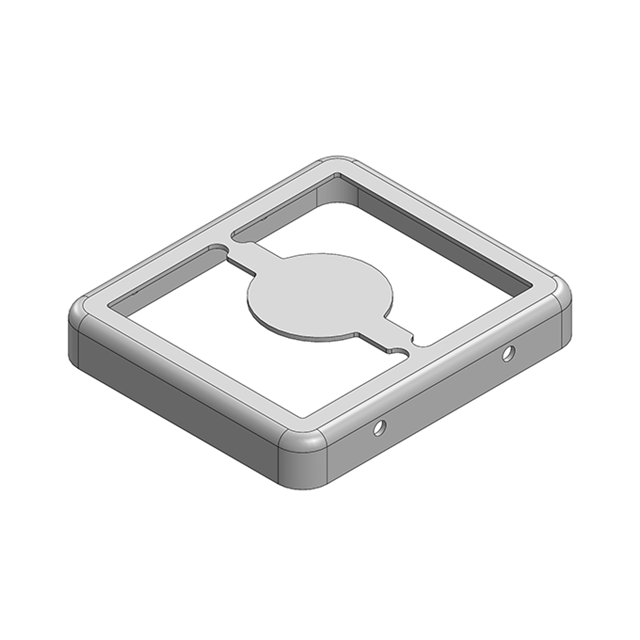

22 X 19.3 X 3.3MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (CRS)

Search across all available documentation for this part.

Active

Masach Tech Ltd.

22 X 19.3 X 3.3MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (CRS)

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.783X0.890" SNAP FIT

Part	Length - Overall [x]	Length - Overall [x]	Mounting Type	Width - Overall [y]	Width - Overall [y]	Type	Height - Overall [z]	Height - Overall	Ventilation	Height - Overall	Width - Overall [x]	Width - Overall [x]
Masach Tech Ltd. MS220-10CP	22.6 mm	0.89 in	Snap Fit	0.783 in	19.9 mm	Cover	0.118 in	3 mm	Vent Holes in Pattern
Masach Tech Ltd. MS220-10F	22 mm	0.866 "	Solder			Frame		3.3 mm		0.13 in	19.3 mm	0.76 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Frame 0.760" (19.30mm) X 0.866" (22.00mm) Solder
