787614-1

Active

TE Connectivity AMP Connectors

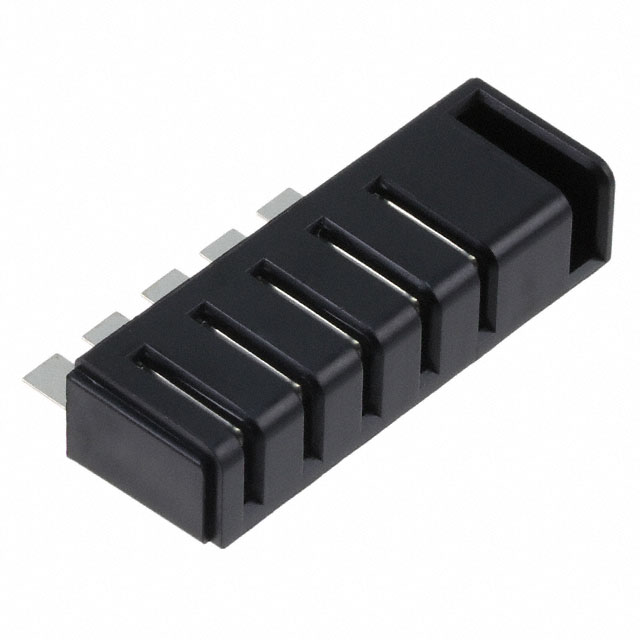

CONN RCPT 5POS 5.00MM EDGE SMD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT 5POS 5.00MM EDGE SMD

Technical Specifications

Parameters and characteristics for this part

Specification	787614-1

Color	Black
Connector Style	10.8V Battery
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Nickel
Contact Material	Phosphor Bronze
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Right Hand Keying
Material - Insulation	Polycarbonate
Material - Insulation	PC
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination	Solder
Voltage Rating	10.8 V

CONN RCPT 5POS 5.00MM EDGE SMD

Part	Contact Finish	Fastening Type	Mounting Type	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Material - Insulation	Material - Insulation	Current Rating (Amps)	Contact Material	Connector Style	Voltage Rating	Features	Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 787614-1	Nickel	Push-Pull	Board Edge, Cutout, Surface Mount	Receptacle, Female Blade Sockets	5 mm	0.197 in	1	Polycarbonate	PC	7 A	Phosphor Bronze	10.8V Battery	10.8 V	Right Hand Keying	Black	Solder	70 °C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Receptacle, Female Blade Sockets Connector Solder 0.197" (5.00mm) Board Edge, Cutout; Surface Mount
