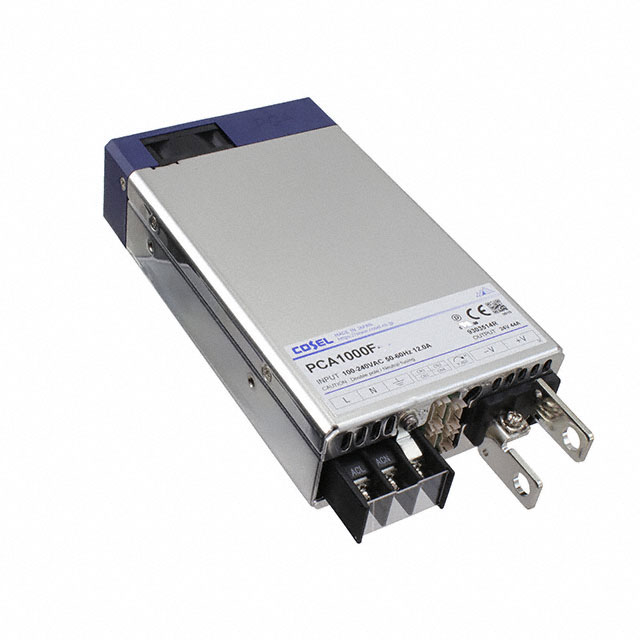

PCA1000F-5

Active

Cosel USA, Inc.

AC/DC CONVERTER 5V 1000W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PCA1000F-5

Active

Cosel USA, Inc.

AC/DC CONVERTER 5V 1000W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCA1000F-5

Applications	ITE (Commercial), Medical
Approval Agency	CSA, D-Mark, cURus, UL, CE
Current - Output 1	200 A
Efficiency	91 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1 kW
Size / Dimension [x]	178 mm
Size / Dimension [x]	7.01 in
Size / Dimension [y]	4.02 in
Size / Dimension [y]	102 mm
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Standard Number	60950-1, 60601-1, 62368-1
Type	Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

PCA1000 Series

Part	Efficiency	Voltage - Isolation	Standard Number	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Applications	Voltage - Output 1	Power (Watts)	Features	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output 1
Cosel USA, Inc. PCA1000F-32-C	93 %	4000 V	60601-1 60950-1 62368-1	Conformal Coated Enclosed	4.02 in	178 mm	41 mm	7.01 in	1.61 "	102 mm	CE CSA cURus D-Mark UL	ITE (Commercial) Medical	32 V	1056 W	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1	-20 C	70 °C	Chassis Mount	33 A
Cosel USA, Inc. PCA1000F-12-P3	92 %	4000 V	60601-1 60950-1 62368-1	Enclosed	4.02 in	178 mm	41 mm	7.01 in	1.61 "	102 mm	CE CSA cURus D-Mark UL	ITE (Commercial) Medical	12 V	1056 W	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1	-20 C	70 °C	Chassis Mount	88 A
Cosel USA, Inc. PCA1000F-12	92 %	4000 V	60601-1 60950-1 62368-1	Enclosed	4.02 in	178 mm	41 mm	7.01 in	1.61 "	102 mm	CE CSA cURus D-Mark UL	ITE (Commercial) Medical	12 V	1056 W	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1	-20 C	70 °C	Chassis Mount	88 A
Cosel USA, Inc. PCA1000F-15-F2	92 %	4000 V	60601-1 60950-1 62368-1	Enclosed	4.02 in	178 mm	41 mm	7.01 in	1.61 "	102 mm	CE CSA cURus D-Mark UL	ITE (Commercial) Medical	15 V	1050 W	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1	-20 C	70 °C	Chassis Mount	70 A
Cosel USA, Inc. PCA1000F-48	93 %	4000 V	60601-1 60950-1 62368-1	Enclosed	4.02 in	178 mm	41 mm	7.01 in	1.61 "	102 mm	CE CSA cURus D-Mark UL	ITE (Commercial) Medical	48 V	1056 W	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1	-20 C	70 °C	Chassis Mount	22 A
Cosel USA, Inc. PCA1000F-5-C	91 %	4000 V	60601-1 60950-1 62368-1	Conformal Coated Enclosed	4.02 in	178 mm	41 mm	7.01 in	1.61 "	102 mm	CE CSA cURus D-Mark UL	ITE (Commercial) Medical	5 V	1 kW	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1	-20 C	70 °C	Chassis Mount	200 A
Cosel USA, Inc. PCA1000F-48-T	93 %	4000 V	60601-1 60950-1 62368-1	Enclosed	4.02 in	178 mm	41 mm	7.01 in	1.61 "	102 mm	CE CSA cURus D-Mark UL	ITE (Commercial) Medical	48 V	1056 W	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1	-20 C	70 °C	Chassis Mount	22 A
Cosel USA, Inc. PCA1000F-24-W1	93 %	4000 V	60601-1 60950-1 62368-1	Enclosed	4.02 in	178 mm	41 mm	7.01 in	1.61 "	102 mm	CE CSA cURus D-Mark UL	ITE (Commercial) Medical	24 V	1056 W	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1	-20 C	70 °C	Chassis Mount	44 A
Cosel USA, Inc. PCA1000F-24-T	93 %	4000 V	60601-1 60950-1 62368-1	Enclosed	4.02 in	178 mm	41 mm	7.01 in	1.61 "	102 mm	CE CSA cURus D-Mark UL	ITE (Commercial) Medical	24 V	1056 W	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1	-20 C	70 °C	Chassis Mount	44 A
Cosel USA, Inc. PCA1000F-5	91 %	4000 V	60601-1 60950-1 62368-1	Enclosed	4.02 in	178 mm	41 mm	7.01 in	1.61 "	102 mm	CE CSA cURus D-Mark UL	ITE (Commercial) Medical	5 V	1 kW	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1	-20 C	70 °C	Chassis Mount	200 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 825.07
		5	$ 797.57
		10	$ 770.06

Description

General part information

PCA1000 Series

Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
