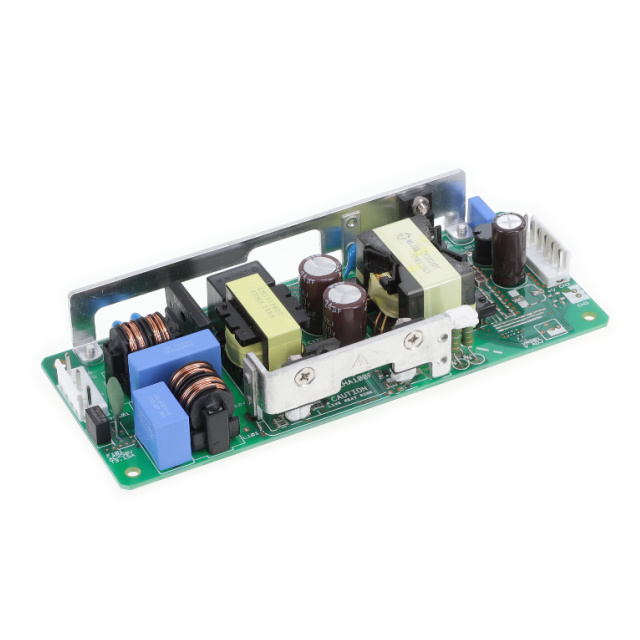

LHA100F-48
ActiveCosel USA, Inc.
AC/DC CONVERTER 48V 101W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LHA100F-48
ActiveCosel USA, Inc.
AC/DC CONVERTER 48V 101W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LHA100F-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, DEMKO, UL |
| Current - Output 1 | 2.1 A |
| Efficiency | 89 % |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Power (Watts) | 101 W |
| Size / Dimension [x] | 154.9 mm |
| Size / Dimension [x] | 6.1 in |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [y] | 2.44 " |
| Size / Dimension [z] | 23.6 mm |
| Size / Dimension [z] | 0.93 in |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 60.18 | |
| 5 | $ 58.35 | |||
| 10 | $ 56.53 | |||
| 25 | $ 54.71 | |||
| 50 | $ 52.88 | |||
| 100 | $ 51.06 | |||
Description
General part information
LHA100F Series
Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
