TB2-2F-DC-4

Active

Switch Components

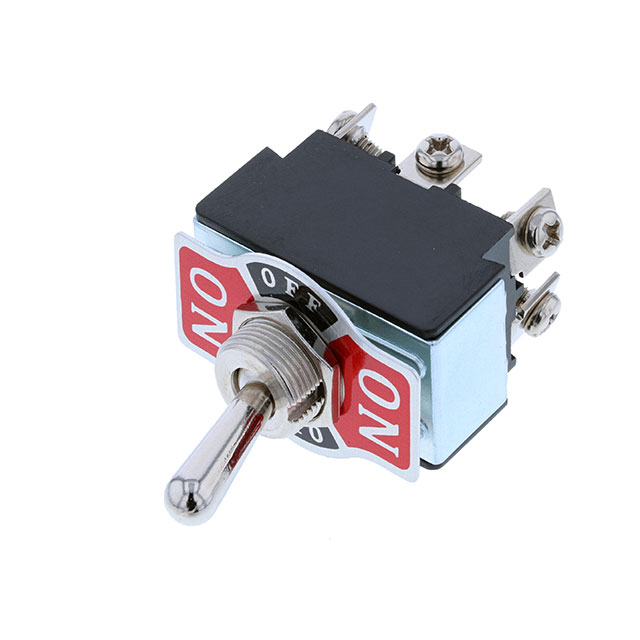

SWITCH TOGGLE DPDT 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE DPDT 20A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount

Technical documentation and resources

Specification	TB2-2F-DC-4	TB2-2F Series

Actuator Length [x]	18.4 mm	18.4 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	M12	M12
Bushing Thread	0.75	0.75
Circuit	DPDT	DPDT
Current Rating (Amps)	20 A	20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Screw Terminal	Screw Terminal, Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

Part	Current Rating (Amps)	Termination Style	Illumination	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Type	Electrical Life	Circuit	Switch Function	Actuator Length [x]	Bushing Thread	Bushing Thread
Switch Components TB2-2F-DC-4	20 A	Screw Terminal	Non-Illuminated	12.2 mm	12 V	Standard Round	6000 Cycles	DPDT	On-Off-On	18.4 mm	M12	0.75
Switch Components TB2-2F-DC-1	20 A	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	12.2 mm	12 V	Standard Round	6000 Cycles	DPDT	On-Off-On	18.4 mm	M12	0.75
