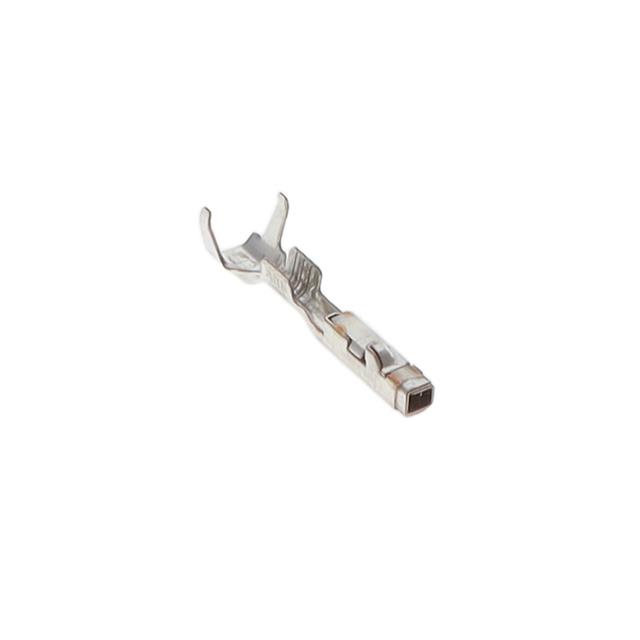

1670146-2
ActiveTE Connectivity Raychem Cable Protection
MCON 1.2 CB REC SWS AU
Deep-Dive with AI
Search across all available documentation for this part.
1670146-2
ActiveTE Connectivity Raychem Cable Protection
MCON 1.2 CB REC SWS AU
Technical Specifications
Parameters and characteristics for this part
| Specification | 1670146-2 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 31.5 µin |
| Contact Finish Thickness | 0.8 µm |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
| Tape & Reel (TR) | 6500 | $ 0.18 | ||
Description
General part information
AMP MCP Hybrid Coax Series
Receptacle Terminal, 20 – 18 AWG, .5 – .75 mm² Wire, 1.2 mm [.047 in] Tab Width, Gold (Au), Sealable, .6 mm [.024 in] Tab Thickness, MCON 1.2mm
