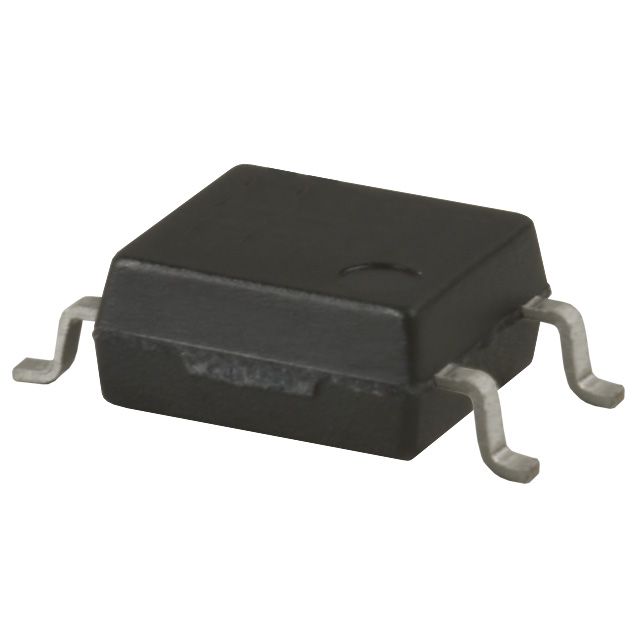

APV2121SX
ActivePanasonic Electric Works
OPTOCOUPLER PHOTOVO 4SOP
Deep-Dive with AI
Search across all available documentation for this part.
APV2121SX
ActivePanasonic Electric Works
OPTOCOUPLER PHOTOVO 4SOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | APV2121SX |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 8 µA |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Photovoltaic |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Turn On / Turn Off Time (Typ) | 800 µs, 100 µs |
| Voltage - Forward (Vf) (Typ) | 1.15 V |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Output (Max) [Max] | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.79 | |
| 10 | $ 1.86 | |||
| 100 | $ 1.43 | |||
| 500 | $ 1.29 | |||
| Digi-Reel® | 1 | $ 2.79 | ||
| 10 | $ 1.86 | |||
| 100 | $ 1.43 | |||
| 500 | $ 1.29 | |||
| Tape & Reel (TR) | 1000 | $ 1.11 | ||
| 2000 | $ 1.05 | |||
| 5000 | $ 1.03 | |||
Description
General part information
APV2121 Series
Optoisolator Photovoltaic Output 2500Vrms 1 Channel 4-SOP
Documents
Technical documentation and resources
No documents available
