M2022SS2W13

Obsolete

NKK Switches

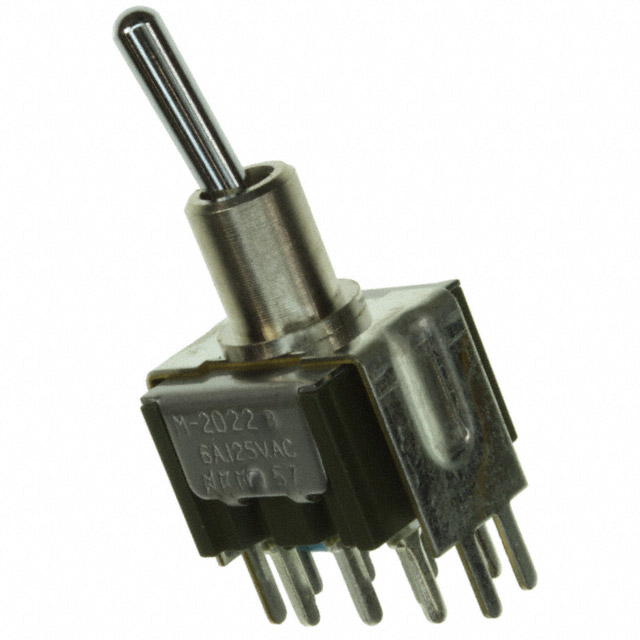

BRACKET PC MOUNT MINIATURE TOGGLE SWITCH; POLES: DPDT; CIRCUITS: ON-ON; CURRENT RATING: 6A (AC), 4A (DC); RATING (AC): 125V; RATING (DC): 30V; ACTUATOR TYPE: STANDARD ROUND; ACTUATOR LENGTH: 10.50MM; ILLUMINATION: NON-ILLUMINATED; MOUNTING TYPE: THROUGH HOLE; TERMINATION STYLE: PC PIN; BUSHING THREAD: UNTHREADED; FEATURES: EPOXY SEALED TERMINALS; RATING: 6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM Series Bushing Mnt Mini Toggle Datasheet Datasheet

M2022SS2W13

Obsolete

NKK Switches

Deep-Dive with AI

DocumentsM Series Bushing Mnt Mini Toggle Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2022SS2W13

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2022SS Series

Part	Actuator Length [x]	Mounting Type	Features	Illumination	Voltage Rating - AC	Electrical Life	Actuator Material	Circuit	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Termination Style	Bushing Thread	Voltage Rating - DC	Panel Cutout Dimensions [diameter]
NKK Switches M2022SS2W13-BC	13.5 mm	Through Hole	Red Cap	Non-Illuminated	125 V	25000 Steps	Brass Chrome Plated	DPDT	4 A 6 A	-30 ░C	85 °C	Standard Round with Cap	On-On	PC Pin	Unthreaded	30 V
NKK Switches M2022SS1W01-CB	13.1 mm		White Cap	Non-Illuminated	125 V	25000 Steps	Brass Chrome Plated	DPDT	4 A 6 A	-30 ░C	85 °C	Standard Round with Cap	On-On	Solder Lug	1/4-40	30 V	6.5 mm
NKK Switches M2022SS2G13-BA	13.5 mm	Through Hole	Black Cap	Non-Illuminated	28 V	50000 Cycles	Brass Chrome Plated	DPDT	0.4 VA	-30 ░C	85 °C	Standard Round with Cap	On-On	PC Pin	Unthreaded	28 V	6.5 mm
NKK Switches M2022SS1W40-CA	13.1 mm	Panel Mount Right Angle Vertical	Black Cap	Non-Illuminated	125 V	25000 Steps	Brass Chrome Plated	DPDT	4 A 6 A	-30 ░C	85 °C	Standard Round with Cap	On-On	PC Pin	1/4-40	30 V	6.5 mm
NKK Switches M2022SS4G01			Epoxy Sealed Terminals	Non-Illuminated	28 V	25000 Steps	Brass Chrome Plated	DPDT	0.4 VA	-30 ░C	85 °C	Standard Round	On-On	Solder Lug	M6 x 0.75	28 V	6.5 mm
NKK Switches M2022SS1G03			Epoxy Sealed Terminals	Non-Illuminated	28 V	50000 Cycles	Brass Chrome Plated	DPDT	0.4 VA	-30 ░C	85 °C	Standard Round	On-On	PC Pin	1/4-40	28 V	6.5 mm
NKK Switches M2022SS2W13		Through Hole	Epoxy Sealed Terminals	Non-Illuminated	125 V	25000 Steps	Brass Chrome Plated	DPDT	4 A 6 A	-30 ░C	85 °C	Standard Round	On-On	PC Pin	Unthreaded	30 V	6.5 mm
NKK Switches M2022SS1W03/C			Epoxy Sealed Terminals	Non-Illuminated	125 V	25000 Steps	Brass Chrome Plated	DPDT	4 A 6 A	-30 ░C	85 °C	Standard Round	On-On	PC Pin	1/4-40	30 V	6.5 mm
NKK Switches M2022SS2W03/U		Through Hole	Epoxy Sealed Terminals	Non-Illuminated	125 V	25000 Steps	Brass Chrome Plated	DPDT	4 A 6 A	-30 ░C	85 °C	Standard Round	On-On	PC Pin	Unthreaded	30 V
NKK Switches M2022SS1W30		Through Hole Right Angle	Epoxy Sealed Terminals	Non-Illuminated	125 V	25000 Steps	Brass Chrome Plated	DPDT	4 A 6 A	-30 ░C	85 °C	Standard Round	On-On	PC Pin	1/4-40	30 V	6.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.02
		10	$ 5.20

Description

General part information

M2022SS Series

Toggle Switch DPDT Through Hole

Documents

Technical documentation and resources

M Series Bushing Mnt Mini Toggle Datasheet

Datasheet
