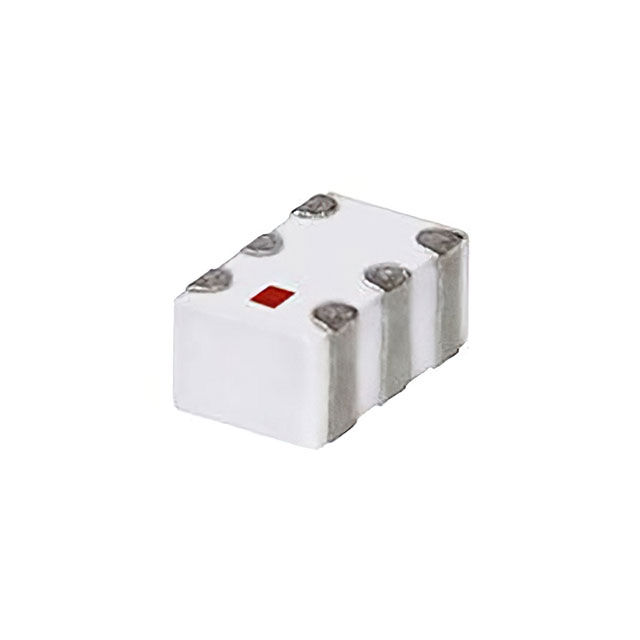

TCW2-63+

Active

MINI-CIRCUITS

1:2 LTCC TRANSFORMER, 4900 - 587

Search across all available documentation for this part.

Active

MINI-CIRCUITS

1:2 LTCC TRANSFORMER, 4900 - 587

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TCW2-63+	TCW2 Series

Frequency Range [Max]	5.875 GHz	2.7 - 7.2 GHz
Frequency Range [Min]	4.9 GHz	2.4 - 700 GHz
Impedance - Unbalanced/Balanced	1:2	1:2
Impedance - Unbalanced/Balanced	-	50 - 100 Ohm
Insertion Loss (Max) [Max]	2 dB	1.3 - 2 dB
Mounting Type	Surface Mount	Surface Mount
Package / Case	0603	0603
Package / Case	1608	1608
Package / Case	6 Leads	6 Leads
Phase Difference	4 °	4 - 19 °
Return Loss (Min) [Min]	12.76 dB	9.5 - 12.76 dB

1:2 LTCC XFMR, 5500 - 7200 MHZ

Part	Impedance - Unbalanced/Balanced	Frequency Range [Max]	Frequency Range [Min]	Phase Difference	Mounting Type	Return Loss (Min) [Min]	Package / Case	Package / Case	Package / Case	Insertion Loss (Max) [Max]	Impedance - Unbalanced/Balanced
MINI-CIRCUITS TCW2-7200+	50 Ohm, 100 Ohm	7.2 GHz	5.5 GHz	8 °	Surface Mount	9.5 dB	0603	1608	6 Leads	1.5 dB
MINI-CIRCUITS TCW2-282+		2.8 GHz	700 MHz	13 °	Surface Mount	10.83 dB	0603	1608	6 Leads	2 dB	1:2
MINI-CIRCUITS TCW2-392+		3.9 GHz	3.3 GHz	5 °	Surface Mount		0603	1608	6 Leads	1.3 dB	1:2
MINI-CIRCUITS TCW2-2700+		2.7 GHz	500 MHz	19 °	Surface Mount	9.5 dB	0603	1608	6 Leads	1.7 dB	1:2
MINI-CIRCUITS TCW2-722+		7.125 GHz	2.4 GHz	15 °	Surface Mount	12 dB	0603	1608	6 Leads	1.9 dB	1:2
MINI-CIRCUITS TCW2-63+		5.875 GHz	4.9 GHz	4 °	Surface Mount	12.76 dB	0603	1608	6 Leads	2 dB	1:2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 1.28

General part information

RF Balun 4.9GHz ~ 5.875GHz 1:2 0603 (1608 Metric), 6 PC Pad
