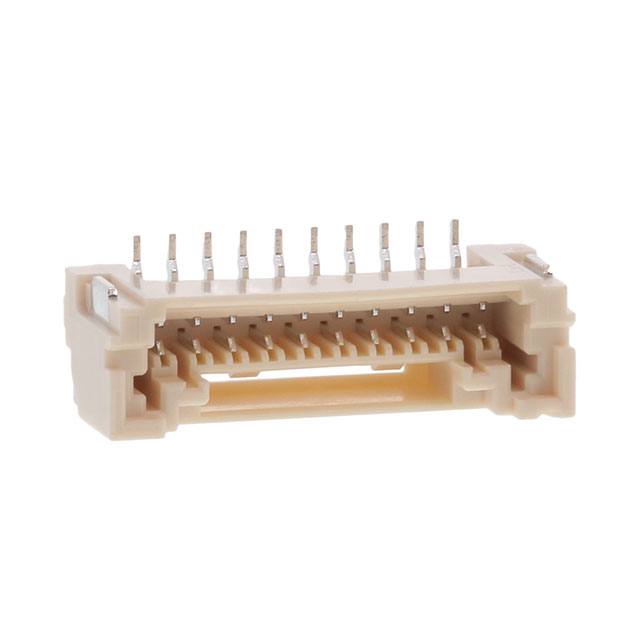

BM10B-ZESS-TBT

Active

JST Sales America Inc.

CONN HEADER SMD 10POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 10POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM10B-ZESS-TBT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.295 in
Insulation Height	7.5 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	9.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Voltage Rating	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Contact Finish - Post	Shrouding	Fastening Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Rows	Material Flammability Rating	Insulation Color	Contact Material	Mated Stacking Heights	Mounting Type	Style	Contact Shape	Current Rating (Amps)	Number of Positions	Connector Type	Features
JST Sales America Inc. BM10B-ZESS-TBT	100 V	All	Outer Shroud Contact	0.295 in	7.5 mm	Tin	Shrouded - 4 Wall	Locking Ramp	Solder	-25 °C	85 °C	Nylon Polyamide (PA)	1	UL94 V-0	Natural	Copper Alloy	9.4 mm	Surface Mount	Board to Cable/Wire	Rectangular	2 A	10	Header	Pick and Place Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 10 position 0.059" (1.50mm)
