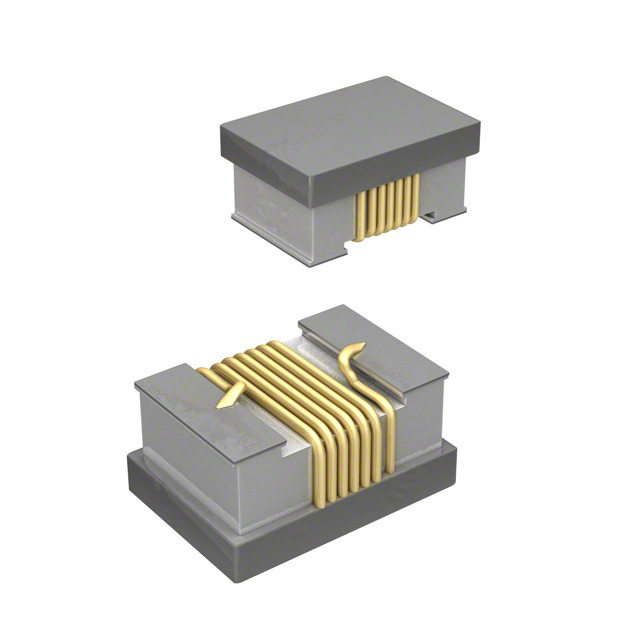

CW201212-R68J

Active

Bourns Inc.

FIXED IND 680NH 190MA 2.05OHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CW201212-R68J

Active

Bourns Inc.

FIXED IND 680NH 190MA 2.05OHM SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CW201212-R68J

DC Resistance (DCR)	2.05 Ohm
Frequency - Self Resonant	270 MHz
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Inductance	0.68 µH
Inductance Frequency - Test	25 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	0805
Q @ Freq	23, 50 MHz
Shielding	Unshielded
Size / Dimension [x]	2.1 mm
Size / Dimension [x]	0.083 in
Size / Dimension [y]	0.059 "
Size / Dimension [y]	1.5 mm
Supplier Device Package	0805 (2012 Metric)
Tolerance	5 %
Type	Wirewound, Drum Core

CW201212 Series

Part	Material - Core	Current Rating (Amps)	Q @ Freq	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Shielding	Tolerance	Inductance	Supplier Device Package	Type	DC Resistance (DCR)	Frequency - Self Resonant	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]
Bourns Inc. CW201212-R91J	Ferrite	150 mA	22	1.5 mm	0.059 "	22 MHz	Unshielded	5 %	910 nH	0805 (2012 Metric)	Drum Core Wirewound	2.5 Ohm	220 MHz	Surface Mount	0805	0.059 "	2.1 mm	1.5 mm	0.083 in	125 °C	-40 °C
Bourns Inc. CW201212-5N6J	Ceramic	600 mA	1 GHz 60	1.5 mm	0.059 "	250 MHz	Unshielded	5 %	5.6 nH	0805 (2012 Metric)	Drum Core Wirewound	80 mOhm	5.8 GHz	Surface Mount	0805	0.059 "	2.1 mm	1.5 mm	0.083 in	125 °C	-40 °C
Bourns Inc. CW201212-R15J	Ceramic	400 mA	50 250 MHz	1.5 mm	0.059 "	100 MHz	Unshielded	5 %	150 nH	0805 (2012 Metric)	Drum Core Wirewound	670 mOhm	950 MHz	Surface Mount	0805	0.059 "	2.1 mm	1.5 mm	0.083 in	125 °C	-40 °C
Bourns Inc. CW201212-39NJ	Ceramic	0.5 A	60 500 MHz	1.5 mm	0.059 "	250 MHz	Unshielded	5 %	39 nH	0805 (2012 Metric)	Drum Core Wirewound	180 mOhm	2.1 GHz	Surface Mount	0805	0.059 "	2.1 mm	1.5 mm	0.083 in	125 °C	-40 °C
Bourns Inc. CW201212-R47J	Ferrite	0.25 A	33 100 MHz	1.5 mm	0.059 "	250 MHz	Unshielded	5 %	470 nH	0805 (2012 Metric)	Drum Core Wirewound	1.72 Ohm	375 MHz	Surface Mount	0805	0.059 "	2.1 mm	1.5 mm	0.083 in	125 °C	-40 °C
Bourns Inc. CW201212-R68J	Ferrite		23 50 MHz	1.5 mm	0.059 "	25 MHz	Unshielded	5 %	0.68 µH	0805 (2012 Metric)	Drum Core Wirewound	2.05 Ohm	270 MHz	Surface Mount	0805	0.059 "	2.1 mm	1.5 mm	0.083 in	125 °C	-40 °C
Bourns Inc. CW201212-22NG	Ceramic	600 mA	60 500 MHz	1.5 mm	0.059 "	250 MHz	Unshielded	2 %	22 nH	0805 (2012 Metric)	Drum Core Wirewound	100 mOhm	3.3 GHz	Surface Mount	0805	0.059 "	2.1 mm	1.5 mm	0.083 in	125 °C	-40 °C
Bourns Inc. CW201212-22NJ	Ceramic	600 mA	60 500 MHz	1.5 mm	0.059 "	250 MHz	Unshielded	5 %	22 nH	0805 (2012 Metric)	Drum Core Wirewound	100 mOhm	3.3 GHz	Surface Mount	0805	0.059 "	2.1 mm	1.5 mm	0.083 in	125 °C	-40 °C
Bourns Inc. CW201212-2N2J	Ceramic	600 mA	1 GHz 50	1.5 mm	0.059 "	250 MHz	Unshielded	5 %		0805 (2012 Metric)	Drum Core Wirewound	60 mOhm	6 GHz	Surface Mount	0805	0.059 "	2.1 mm	1.5 mm	0.083 in	125 °C	-40 °C
Bourns Inc. CW201212-18NJ	Ceramic	600 mA	60 500 MHz	1.5 mm	0.059 "	250 MHz	Unshielded	5 %	18 nH	0805 (2012 Metric)	Drum Core Wirewound	80 mOhm	3.4 GHz	Surface Mount	0805	0.059 "	2.1 mm	1.5 mm	0.083 in	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.33
		10	$ 0.27
		25	$ 0.24
		50	$ 0.22
		100	$ 0.20
		250	$ 0.19
		500	$ 0.17
		1000	$ 0.14
	Digi-Reel®	1	$ 0.33
		10	$ 0.27
		25	$ 0.24
		50	$ 0.22
		100	$ 0.20
		250	$ 0.19
		500	$ 0.17
		1000	$ 0.14
	Tape & Reel (TR)	2000	$ 0.14
		4000	$ 0.13
		6000	$ 0.13
		10000	$ 0.12
		50000	$ 0.11

Description

General part information

CW201212 Series

680 nH Unshielded Drum Core, Wirewound Inductor 190 mA 2.05Ohm 0805 (2012 Metric)
