C2470A.18.10

Active

Prysmian Group

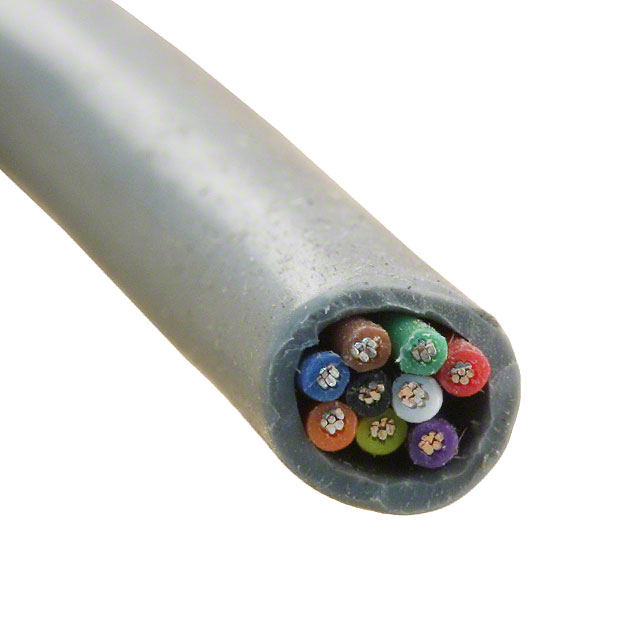

CABLE 9COND 24AWG GRAY 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 9COND 24AWG GRAY 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C2470A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.227 in
Jacket (Insulation) Diameter [diameter]	5.77 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

Part	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Wire Gauge	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Voltage	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color
Prysmian Group C2470A.18.10	Communication Control	-20 C	80 C	Copper Tinned	24 AWG	9	0.227 in	5.77 mm	Multi-Conductor	300 V	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	32 AWG	7	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 Conductor Multi-Conductor Cable Gray 24 AWG 500.0' (152.4m)

Technical documentation and resources

No documents available
