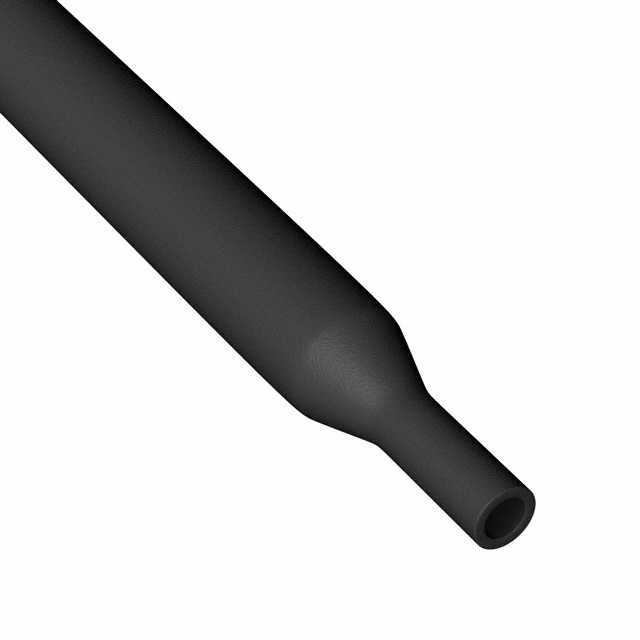

Q2-F4X-1 1/2-01-QB48IN-5

Active

Qualtek

HEATSHRINK 1-1/2" X 4' BLK 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 1-1/2" X 4' BLK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F4X-1 1/2-01-QB48IN-5

Color	Black
Features	UV Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	0.375 in
Inner Diameter - Recovered [diameter]	9.53 mm
Inner Diameter - Supplied [diameter]	38.1 mm
Inner Diameter - Supplied [diameter]	1.5 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	1.7 mm
Recovered Wall Thickness	0.067 in
Shelf Life	60 Months
Shrink Temperature	70 °C
Shrinkage Ratio	4 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Shrinkage Ratio	Shelf Life	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Features	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Material	Length	Length	Length
Qualtek Q2-F4X-1 1/2-01-QB48IN-5	4 to 1	60 Months	1.7 mm	0.067 in	70 °C	38.1 mm	1.5 in	0.375 in	9.53 mm	Black	Flame Retardant UV Resistant	-50 °F -10 °C	40 °C	Tubing Flexible	135 °C	-55 °C	1.22 m	4 ft	Polyolefin (PO)
Qualtek Q2-F4X-1-01-QB6IN-8	4 to 1	60 Months	1.7 mm	0.067 in	70 °C	25.4 mm	1 in	0.278 in	7.06 mm	Black	Flame Retardant UV Resistant	-50 °F -10 °C	40 °C	Tubing Flexible	135 °C	-55 °C			Polyolefin (PO)	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 1.500" (38.10mm) 4 to 1 Black 4.00' (1.22m)
