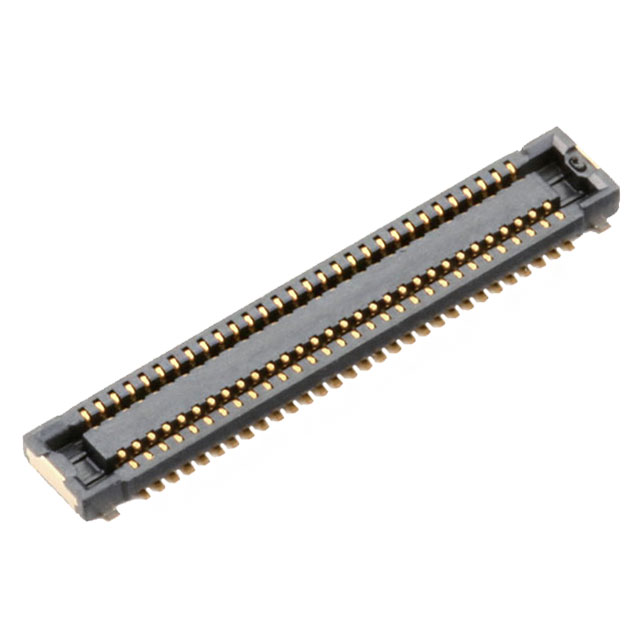

AXF5A6012
ActivePanasonic Electric Works
CONN SOCKET 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXF5A6012
ActivePanasonic Electric Works
CONN SOCKET 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXF5A6012 |
|---|---|
| Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board [z] | 0.03 in |
| Height Above Board [z] | 0.75 mm |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.68 | |
| 10 | $ 2.43 | |||
| 25 | $ 2.30 | |||
| 50 | $ 2.25 | |||
| 100 | $ 2.14 | |||
| 250 | $ 1.87 | |||
| 500 | $ 1.82 | |||
| 1000 | $ 1.55 | |||
| 2500 | $ 1.45 | |||
| Digi-Reel® | 1 | $ 2.68 | ||
| 10 | $ 2.43 | |||
| 25 | $ 2.30 | |||
| 50 | $ 2.25 | |||
| 100 | $ 2.14 | |||
| 250 | $ 1.87 | |||
| 500 | $ 1.82 | |||
| 1000 | $ 1.55 | |||
| 2500 | $ 1.45 | |||
| Tape & Reel (TR) | 5000 | $ 1.32 | ||
Description
General part information
AXF5A6 Series
60 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
