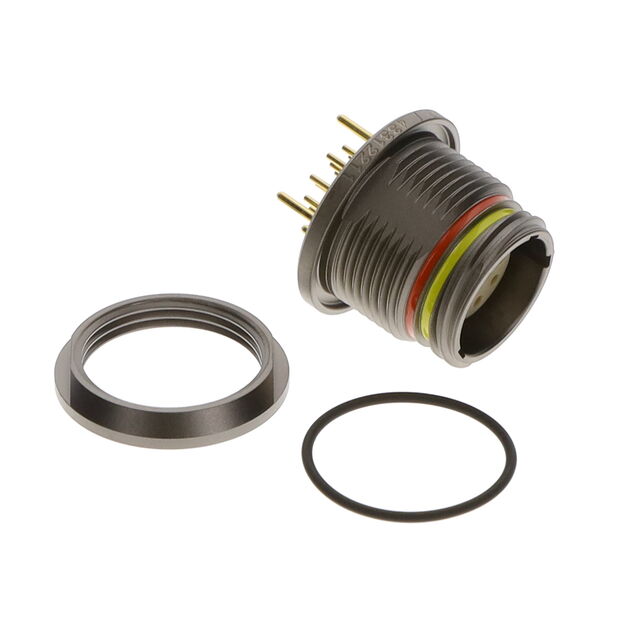

HEP.2M.312.XLNP
ActiveLEMO
CONN RCPT FMALE 12POS GOLD SLDR
Deep-Dive with AI
Search across all available documentation for this part.
HEP.2M.312.XLNP
ActiveLEMO
CONN RCPT FMALE 12POS GOLD SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HEP.2M.312.XLNP | HEP.2M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Color | Gray | Gray, Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 7 A | 4 - 8 A |
| Features | Potted | Potted |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 12 | 10 - 19 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation | P | P |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel, Chrome |
| Shell Material | Aluminum Alloy | Aluminum Alloy, Brass |
| Shell Size - Insert | 312 | 310 - 319 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
HEP.2M Series
CONN RCPT FMALE 19POS GOLD SLDR
| Part | Primary Material | Ingress Protection | Mounting Type | Shielding | Shell Size - Insert | Features | Mounting Feature | Color | Contact Finish - Mating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Number of Positions | Shell Material | Insert Material | Applications | Current Rating (Amps) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO HEP.2M.319.XLNP | Metal | IP68 - Dust Tight, Waterproof | Panel Mount, Through Hole | Shielded | 319 | Potted | Bulkhead - Front Side Nut | Gray | Gold | Solder | -20 C | 80 C | P | Receptacle, Female Sockets | 59 Áin | 1.5 Ám | Nickel | 19 | Aluminum Alloy | Polyetheretherketone (PEEK) | Aerospace, Automotive, Aviation, Military | 4 A | Bronze |
LEMO HEP.2M.319.CLNP | Metal | IP68 - Dust Tight, Waterproof | Panel Mount, Through Hole | Shielded | 319 | Potted | Bulkhead - Front Side Nut | Silver | Gold | Solder | -20 C | 80 C | P | Receptacle, Female Sockets | 59 Áin | 1.5 Ám | Chrome | 19 | Brass | Polyetheretherketone (PEEK) | Aerospace, Automotive, Aviation, Military | 4 A | Bronze |
LEMO HEP.2M.310.XLNP | Metal | IP68 - Dust Tight, Waterproof | Panel Mount, Through Hole | Shielded | 310 | Potted | Bulkhead - Front Side Nut | Gray | Gold | Solder | -20 C | 80 C | P | Receptacle, Female Sockets | 59 Áin | 1.5 Ám | Nickel | 10 | Aluminum Alloy | Polyetheretherketone (PEEK) | Aerospace, Automotive, Aviation, Military | 8 A | Bronze |
LEMO HEP.2M.312.XLNP | Metal | IP68 - Dust Tight, Waterproof | Panel Mount, Through Hole | Shielded | 312 | Potted | Bulkhead - Front Side Nut | Gray | Gold | Solder | -20 C | 80 C | P | Receptacle, Female Sockets | 59 Áin | 1.5 Ám | Nickel | 12 | Aluminum Alloy | Polyetheretherketone (PEEK) | Aerospace, Automotive, Aviation, Military | 7 A | Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 101.99 | |
| 10 | $ 79.38 | |||
| 25 | $ 72.22 | |||
| 50 | $ 67.40 | |||
| 100 | $ 63.03 | |||
Description
General part information
HEP.2M Series
12 Position Circular Connector Receptacle, Female Sockets Solder
