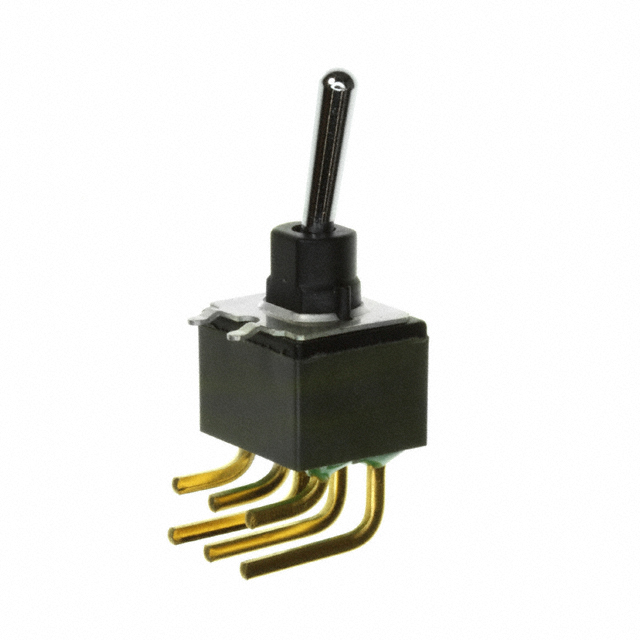

M2T25SA5G30

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Voltage Rating - DC	Illumination	Bushing Thread	Switch Function	Electrical Life	Actuator Material	Current Rating (Amps)	Circuit	Voltage Rating - AC	Features	Actuator Type	Mounting Type	Actuator Length [x]
NKK Switches M2T25SA5G30	-30 ░C	85 °C	PC Pin	28 V	Non-Illuminated	Unthreaded	On-Mom	50000 Cycles	Brass Nickel Plated	0.4 VA	DPDT	28 V	Process Sealed	Standard Round	Through Hole Right Angle	0.5 in
NKK Switches M2T25SA5G03	-30 ░C	85 °C	PC Pin	28 V	Non-Illuminated	Unthreaded	On-Mom	50000 Cycles	Brass Nickel Plated	0.4 VA	DPDT	28 V	Process Sealed	Standard Round	Through Hole	0.5 in
NKK Switches M2T25SA5W03	-30 ░C	85 °C	PC Pin	28 V	Non-Illuminated	Unthreaded	On-Mom	25000 Steps	Brass Nickel Plated	0.4 VA	DPDT	28 V	Process Sealed	Standard Round	Through Hole	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DPDT Through Hole, Right Angle
