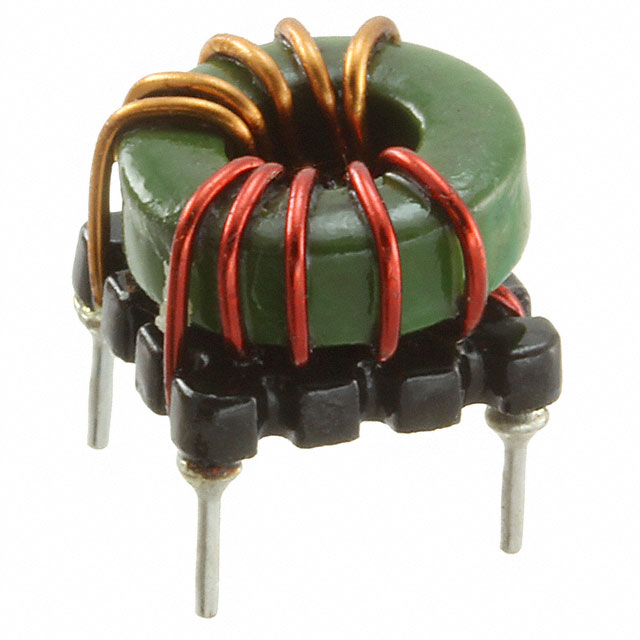

CMC-07

Active

RECOM Power

COMMON MODE CHOKES / FILTERS COMMON MODE CHOKE FOR EMC NAVIN NAVOUT

Search across all available documentation for this part.

Active

RECOM Power

COMMON MODE CHOKES / FILTERS COMMON MODE CHOKE FOR EMC NAVIN NAVOUT

Technical Specifications

Parameters and characteristics for this part

Common Mode Chokes / Filters Common Mode Choke FOR EMC NAVin NAVout

Part	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max)	Filter Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Lines	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Current Rating (Max) [Max]
RECOM Power CMC-07	8.8 mm	0.346 in	20 mOhm	Power Line	11 mm	0.433 in	0.433 in	11 mm	2	Through Hole	-40 °C	105 ░C	Horizontal	4 Lead	5.2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Common Mode Chokes / Filters Common Mode Choke FOR EMC NAVin NAVout

Technical documentation and resources

No documents available
