4280-9SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 9POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 9POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

CONN RCPT FMALE 9POS GOLD CRIMP

Part	Fastening Type	Mounting Feature	Color	Contact Material	Orientation	Number of Positions	Voltage Rating	Termination	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Connector Type	Current Rating (Amps)	Ingress Protection	Shielding
Conxall/Switchcraft 4280-9SG-300	Bayonet Lock	Bulkhead - Front Side Nut	Black	Brass	Keyed	9	600 V	Crimp	Plastic	-40 °C	115 °C	Gold	Receptacle, Female Sockets	5.6 A	Weathertight	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

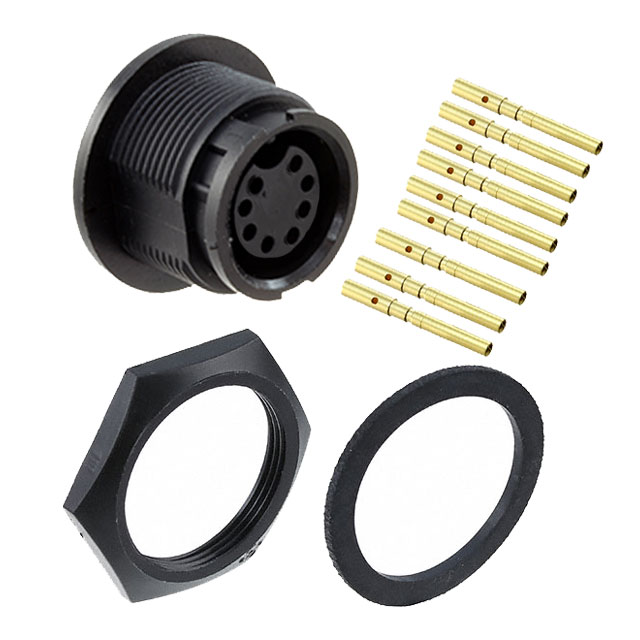

9 Position Circular Connector Receptacle, Female Sockets Crimp
