SSL-LX507DT3GT

Active

Lumex Opto/Components Inc.

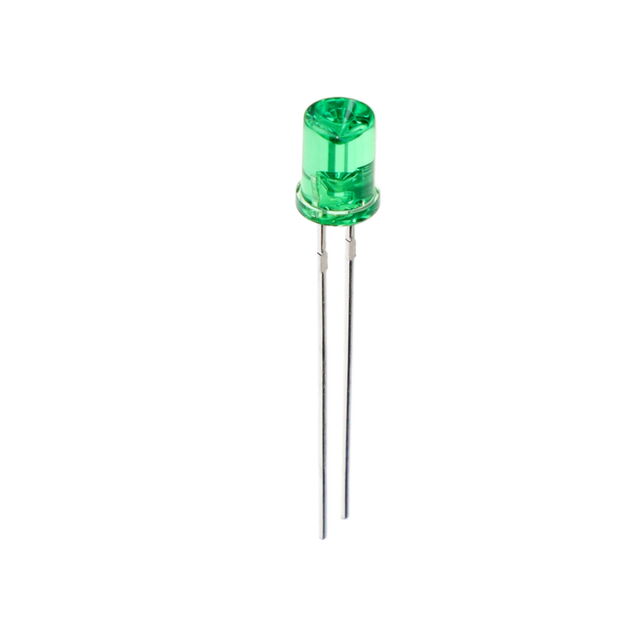

LED T-5MM 565NM GREEN TRANSP

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED T-5MM 565NM GREEN TRANSP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX507DT3GT	SSL-LX507 Series

Color	Green	Green, Yellow, Red
Configuration	-	Independent, Bidirectional, Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	8.13 mm	7 - 8.13 mm
Lens Color	Green	Green, Yellow, White, Colorless
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear, Diffused
Millicandela Rating	30 mcd	6 - 200 mcd
Millicandela Rating	-	20 mcd
Millicandela Rating	-	20 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Size / Dimension	-	5 mm
Supplier Device Package	T-1 3/4 (5mm)	T-1 3/4 (5mm), T-1 3/4 DIMPLE TOP, T-1 3/4
Viewing Angle	140 °	60 - 140 °
Voltage - Forward (Vf) (Typ)	2.2 V	2 - 2.2 V
Wavelength - Peak	565 nm	565 - 700 nm

LED T-5MM 565NM GREEN TRANSP

Part	Lens Transparency	Lens Style	Lens Size	Lens Size	Mounting Type	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Package / Case	Supplier Device Package	Viewing Angle	Lens Color	Color	Current - Test	Wavelength - Peak	Millicandela Rating	Configuration	Size / Dimension [diameter]	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSL-LX507DT3GT	Clear	Round with Domed Top	T-1 3/4	5 mm	Through Hole	8.13 mm	2.2 V	Radial	T-1 3/4 (5mm)	140 °	Green	Green	20 mA	565 nm	30 mcd
Lumex Opto/Components Inc. SSL-LX507DT3SYT	Clear	Round with Domed Top	T-1 3/4	5 mm	Through Hole	7 mm	2.1 V	Radial	T-1 3/4 DIMPLE TOP	140 °	Yellow	Yellow	20 mA	590 nm	200 mcd	Independent	5 mm
Lumex Opto/Components Inc. SSL-LX507F3HGW	Diffused	Round with Domed Top	T-1 3/4	5 mm	Through Hole	7.2 mm	2 V, 2.2 V	Radial	T-1 3/4	60 °	White	Green, Red	20 mA, 20 mA	565 nm, 700 nm		Bidirectional		20 mcd	20 mcd
Lumex Opto/Components Inc. SSL-LX507DT3IC	Clear		T-1 3/4	5 mm	Through Hole	7 mm	2 V	Radial	T-1 3/4 DIMPLE TOP	140 °	Colorless	Red	20 mA	635 nm	6 mcd	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green LED Indication - Discrete 2.2V Radial
