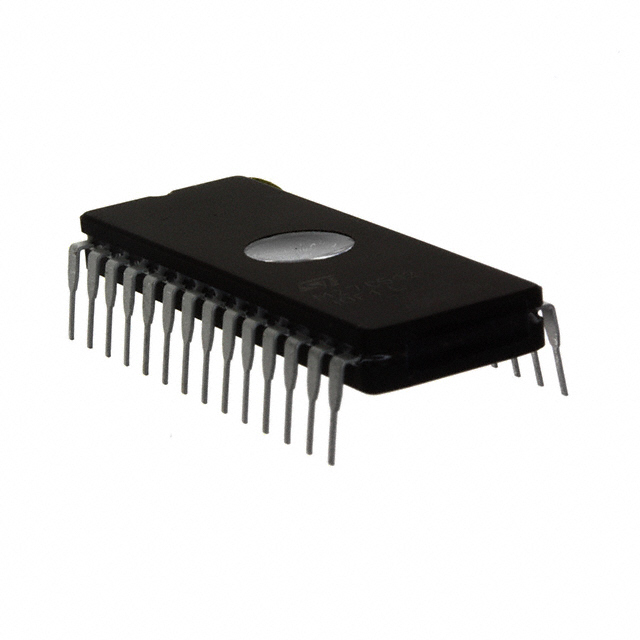

M27C512-10F1

Obsolete

STMicroelectronics

IC EPROM 512KBIT PARALLEL 28CDIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M27C512-10F1

Obsolete

STMicroelectronics

IC EPROM 512KBIT PARALLEL 28CDIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M27C512-10F1

Access Time	100 ns
Memory Format	EPROM
Memory Interface	Parallel
Memory Organization	64K x 8
Memory Size	64 kb
Memory Type	Non-Volatile
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	28-CDIP Window
Package / Case	0.6 in
Package / Case	15.24 mm
Supplier Device Package	28-CDIP Frit Seal with Window
Technology	EPROM - UV
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

M27C512 Series

Part	Technology	Memory Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Access Time	Memory Organization	Memory Type	Memory Format	Mounting Type	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Memory Interface	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case
STMicroelectronics M27C512-45C1	EPROM - OTP	64 kb	4.5 V	5.5 V	45 ns	64K x 8	Non-Volatile	EPROM	Surface Mount	32-PLCC	11.43	13.97	Parallel	70 °C	0 °C	32-LCC (J-Lead)
STMicroelectronics M27C512-90C1	EPROM - OTP	64 kb	4.5 V	5.5 V	90 ns	64K x 8	Non-Volatile	EPROM	Surface Mount	32-PLCC	11.43	13.97	Parallel	70 °C	0 °C	32-LCC (J-Lead)
STMicroelectronics M27C512-70C6	EPROM - OTP	64 kb	4.5 V	5.5 V	70 ns	64K x 8	Non-Volatile	EPROM	Surface Mount	32-PLCC	11.43	13.97	Parallel	85 °C	-40 °C	32-LCC (J-Lead)
STMicroelectronics M27C512-90C6	EPROM - OTP	64 kb	4.5 V	5.5 V	90 ns	64K x 8	Non-Volatile	EPROM	Surface Mount	32-PLCC	11.43	13.97	Parallel	85 °C	-40 °C	32-LCC (J-Lead)
STMicroelectronics M27C512-90F1	EPROM - UV	64 kb	4.5 V	5.5 V	90 ns	64K x 8	Non-Volatile	EPROM	Through Hole	28-CDIP Frit Seal with Window			Parallel	70 °C	0 °C	28-CDIP Window	0.6 in	15.24 mm
STMicroelectronics M27C512-45XF1	EPROM - UV	64 kb	4.75 V	5.25 V	45 ns	64K x 8	Non-Volatile	EPROM	Through Hole	28-CDIP Frit Seal with Window			Parallel	70 °C	0 °C	28-CDIP Window	0.6 in	15.24 mm
STMicroelectronics M27C512-12B1	EPROM - OTP	64 kb	4.5 V	5.5 V	120 ns	64K x 8	Non-Volatile	EPROM	Through Hole	28-PDIP			Parallel	70 °C	0 °C	28-DIP	0.6 in	15.24 mm
STMicroelectronics M27C512-70C6TR	EPROM - OTP	64 kb	4.5 V	5.5 V	70 ns	64K x 8	Non-Volatile	EPROM	Surface Mount	32-PLCC	11.43	13.97	Parallel	85 °C	-40 °C	32-LCC (J-Lead)
STMicroelectronics M27C512-10F1	EPROM - UV	64 kb	4.5 V	5.5 V	100 ns	64K x 8	Non-Volatile	EPROM	Through Hole	28-CDIP Frit Seal with Window			Parallel	70 °C	0 °C	28-CDIP Window	0.6 in	15.24 mm
STMicroelectronics M27C512-90B1	EPROM - OTP	64 kb	4.5 V	5.5 V	90 ns	64K x 8	Non-Volatile	EPROM	Through Hole	28-PDIP			Parallel	70 °C	0 °C	28-DIP	0.6 in	15.24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M27C512 Series

EPROM - UV Memory IC 512Kbit Parallel 100 ns 28-CDIP Frit Seal with Window

Documents

Technical documentation and resources
