796748-3

Active

TE Connectivity AMP Connectors

TERM BLK 3POS TOP ENTRY 5MM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERM BLK 3POS TOP ENTRY 5MM PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796748-3	796748 Series

Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Color	Green	Green
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	Vertical with Board	Vertical with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	3	2 - 3
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

TERM BLK 3POS TOP ENTRY 5MM PCB

Part	Mounting Type	Positions Per Level	Color	Voltage	Contact Material - Plating [custom]	Screw Material - Plating	Features	Wire Termination	Pitch [x]	Pitch [x]	Screw Thread	Clamp Material - Plating	Wire Gauge [Max]	Wire Gauge [Min]	Mating Orientation	Torque - Screw	Torque - Screw	Current	Number of Levels
TE Connectivity AMP Connectors 796748-3	Through Hole	3	Green	300 V	Brass - Tin Plated	Brass - Nickel Plated	Interlocking (Side)	Screw - Rising Cage Clamp	5 mm	0.197 in	M3	Brass - Nickel Plated	30 AWG	12 AWG	Vertical with Board	0.79 Nm	7 Lb-In	17.5 A	1
TE Connectivity AMP Connectors 796748-2	Through Hole	2	Green	300 V	Brass - Tin Plated	Brass - Nickel Plated	Interlocking (Side)	Screw - Rising Cage Clamp	5 mm	0.197 in	M3	Brass - Nickel Plated	30 AWG	12 AWG	Vertical with Board	0.79 Nm	7 Lb-In	17.5 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

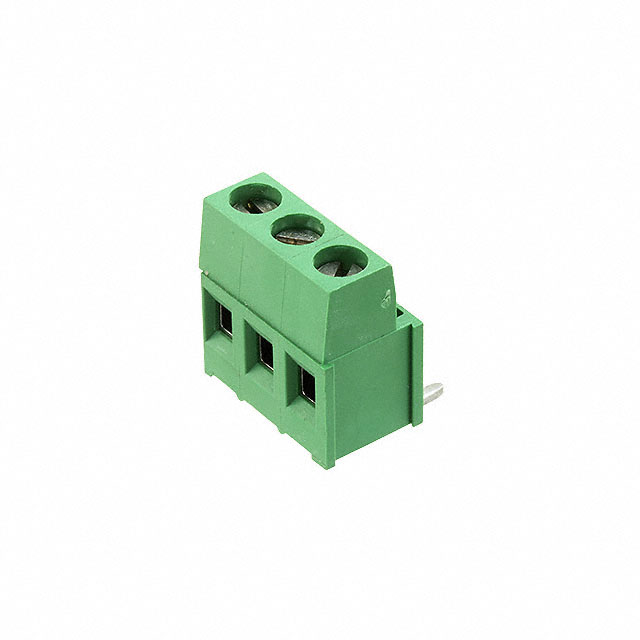

3 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
