HD1760JL

Obsolete

STMicroelectronics

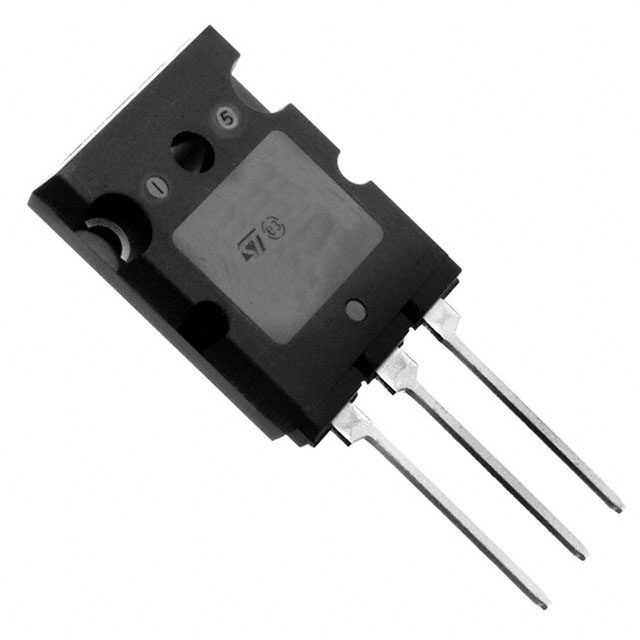

TRANS NPN 800V 36A TO264

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS NPN 800V 36A TO264

Technical Specifications

Parameters and characteristics for this part

Specification	HD1760JL

Current - Collector (Ic) (Max) [Max]	36 A
Current - Collector Cutoff (Max) [Max]	200 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	5
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-264AA, TO-264-3
Power - Max [Max]	200 W
Supplier Device Package	TO-264
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	800 V

Part	Supplier Device Package	Package / Case	Vce Saturation (Max) @ Ib, Ic	Mounting Type	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Transistor Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature
STMicroelectronics HD1760JL	TO-264	TO-264-3 TO-264AA	2 V	Through Hole	200 µA	36 A	5	200 W	NPN	800 V	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 800 V 36 A 200 W Through Hole TO-264
