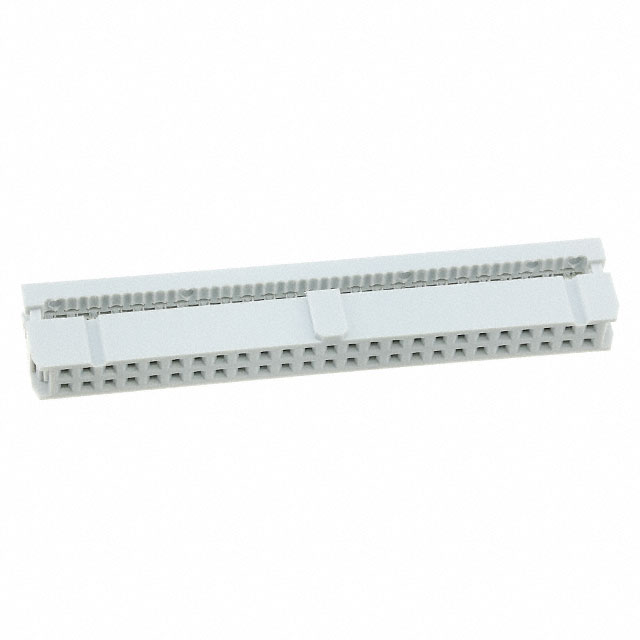

AWP 50-7540-T
ActiveAssmann WSW Components
CONN SOCKET 50POS IDC TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AWP 50-7540-T
ActiveAssmann WSW Components
CONN SOCKET 50POS IDC TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AWP 50-7540-T |
|---|---|
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Socket |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Features | Polarizing Key, Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.78 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.62 | |||
| 48 | $ 0.59 | |||
| 96 | $ 0.56 | |||
| 240 | $ 0.51 | |||
| 480 | $ 0.49 | |||
| 960 | $ 0.40 | |||
| 2400 | $ 0.37 | |||
Description
General part information
AWP 50 Series
50 Position Rectangular Socket Connector IDC Tin
