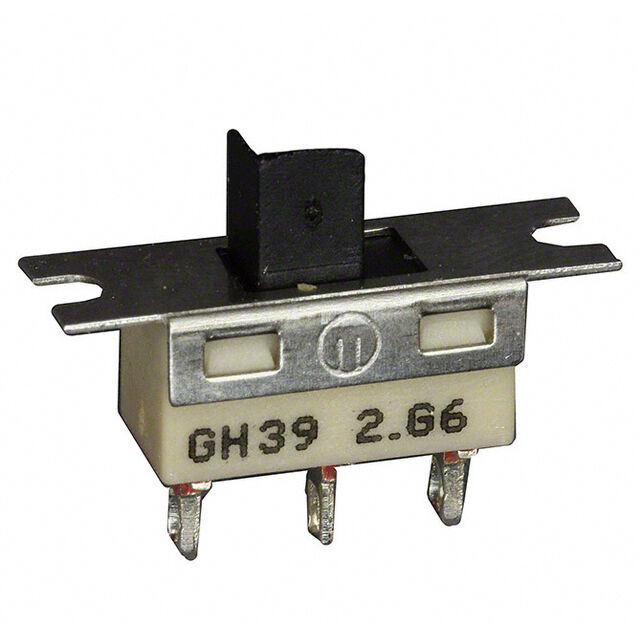

GH39S010001

Active

APEM

SWITCH SLIDE SPDT 3A 30V

Search across all available documentation for this part.

Active

APEM

SWITCH SLIDE SPDT 3A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	GH39S010001

Actuator Length [z]	5.1 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard
Circuit	SPDT
Contact Material	Silver (Ag)
Contact Timing	Not Specified
Current Rating (Amps)	3 A
Electrical Life	20000 Steps
Features	Epoxy Sealed Terminals
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Switch Travel [custom]	2.2 mm
Termination Style	Solder Lug
Voltage Rating - DC	30 V

Part	Electrical Life	Actuator Length [z]	Voltage Rating - DC	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Switch Travel [custom]	Actuator Material	Contact Material	Features	Termination Style	Actuator Type	Contact Timing	Current Rating (Amps)	Contact Finish	Voltage Rating - AC
APEM GH39S010001	20000 Steps	5.1 mm	30 V	SPDT	-30 ░C	85 °C	On-Off-On	2.2 mm	Glass Filled Nylon Polyamide (PA)	Silver (Ag)	Epoxy Sealed Terminals	Solder Lug	Standard	Not Specified	3 A
APEM GH39S000001	60000 Cycles	5.1 mm	20 V	SPDT	-30 ░C	85 °C	On-Off-On	2.2 mm	Glass Filled Nylon Polyamide (PA)	Brass	Epoxy Sealed Terminals	Solder Lug	Standard	Not Specified	0.4 VA	Gold	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPDT Panel Mount
