5-102766-4
ActiveTE Connectivity AMP Connectors

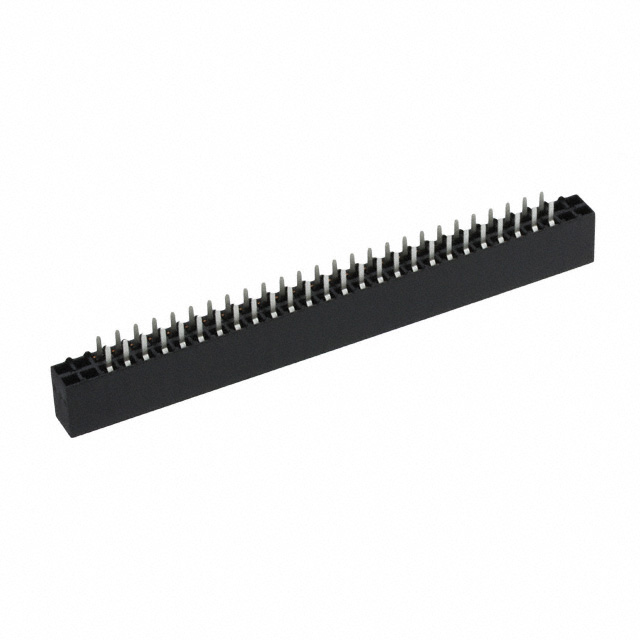

CONN RCPT 60POS 0.1 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-102766-4
ActiveTE Connectivity AMP Connectors
CONN RCPT 60POS 0.1 GOLD PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-102766-4 | 102766 Series |
|---|---|---|
| Connector Type | Receptacle | Receptacle |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 0.25 çm | 0.25 çm |
| Contact Finish Thickness - Mating | 10 çin | 10 çin |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Post | 2.92 mm | 2.92 mm |
| Contact Length - Post | 0.115 in | 0.115 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 8.13 mm | 8.13 mm |
| Insulation Height | 0.32 in | 0.32 in |
| Insulation Material | Thermoplastic, Glass Filled, Polyester | Thermoplastic, Glass Filled, Polyester |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 60 | 48 - 60 |
| Number of Positions Loaded | 52 | 40 - 52 |
| Number of Rows | 2 | 2 |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 38.74 | |
| 14 | $ 31.97 | |||
| 105 | $ 27.46 | |||
102766 Series
CONN RCPT 48POS 0.1 GOLD PCB
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Type | Insulation Material | Mounting Type | Number of Positions Loaded | Contact Shape | Insulation Color | Termination | Insulation Height | Insulation Height | Contact Material | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Connector Type | Number of Rows | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102766-1 | 150 Áin | 3.81 Ám | UL94 V-0 | 10 çin | 0.25 çm | 48 | Female Socket | Glass Filled, Polyester, Thermoplastic | Through Hole | 40 | Square | Black | Solder | 8.13 mm | 0.32 in | Phosphor Bronze | Tin-Lead | 2.54 mm | 0.1 in | Receptacle | 2 | 2.92 mm | 0.115 in | 0.1 in | 2.54 mm | Push-Pull | Gold |
TE Connectivity AMP Connectors 5-102766-1 | 150 Áin | 3.81 Ám | UL94 V-0 | 10 çin | 0.25 çm | 48 | Female Socket | Glass Filled, Polyester, Thermoplastic | Through Hole | 40 | Square | Black | Solder | 8.13 mm | 0.32 in | Phosphor Bronze | Tin | 2.54 mm | 0.1 in | Receptacle | 2 | 2.92 mm | 0.115 in | 0.1 in | 2.54 mm | Push-Pull | Gold |
TE Connectivity AMP Connectors 5-102766-4 | 150 Áin | 3.81 Ám | UL94 V-0 | 10 çin | 0.25 çm | 60 | Female Socket | Glass Filled, Polyester, Thermoplastic | Through Hole | 52 | Square | Black | Solder | 8.13 mm | 0.32 in | Phosphor Bronze | Tin | 2.54 mm | 0.1 in | Receptacle | 2 | 2.92 mm | 0.115 in | 0.1 in | 2.54 mm | Push-Pull | Gold |
Description
General part information
102766 Series
60 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
