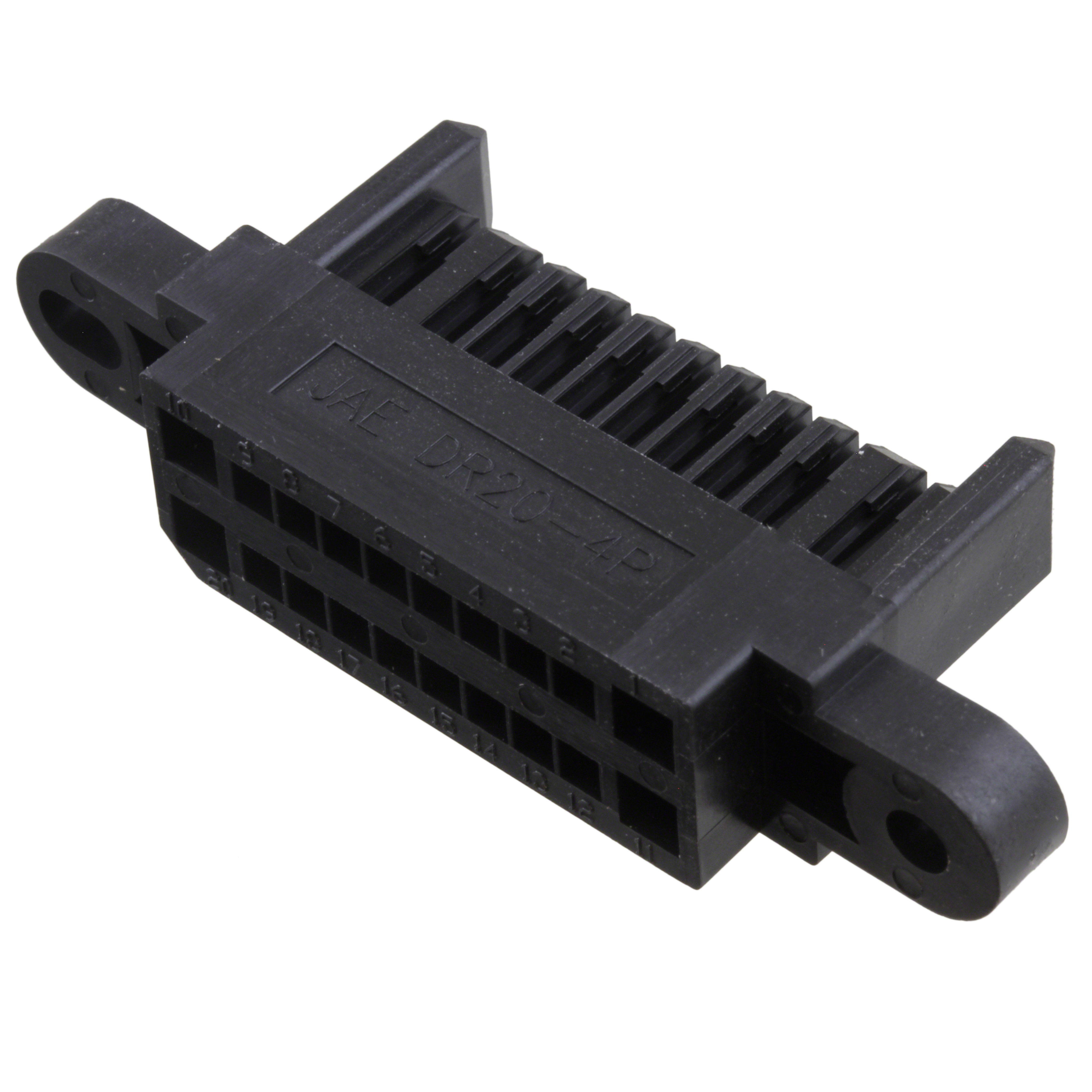

DR-20-4PC-F0
ActiveJAE Electronics
CONN PLUG HSG 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DR-20-4PC-F0
ActiveJAE Electronics
CONN PLUG HSG 20POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DR-20-4PC-F0 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.66 | |
| 10 | $ 1.45 | |||
| 25 | $ 1.39 | |||
| 40 | $ 1.36 | |||
| 80 | $ 1.29 | |||
| 230 | $ 1.17 | |||
| 800 | $ 1.05 | |||
| 1600 | $ 0.89 | |||
| 2400 | $ 0.86 | |||
Description
General part information
DR-20-4P Series
20 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
