04-SCW5-10OR

Active

NTE Electronics, Inc

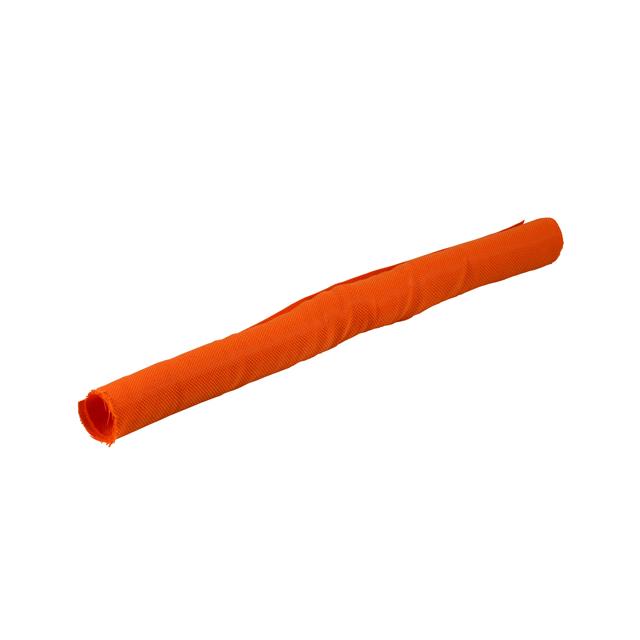

SELF WRAP 0.197" X 10' ORANGE

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SELF WRAP 0.197" X 10' ORANGE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	04-SCW5-10OR	04-SCW5 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Diameter - Inside, Expanded [diameter]	6 mm	6 mm
Diameter - Inside, Expanded [diameter]	0.236 in	0.236 in
Diameter - Inside, Non-Expanded [diameter]	0.197 in	0.197 in
Diameter - Inside, Non-Expanded [diameter]	5 mm	5 mm
Length	10 ft	10 - 100 ft
Length	3.05 m	3.05 - 30.48 m
Material	Polyester (PES)	Polyester (PES)
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C
Type	Self Wrap	Self Wrap
Type Attributes	Slit Harness	Slit Harness

SELF WRAP 0.197" X 10' ORANGE

Part	Type	Type Attributes	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Length	Length	Abrasion Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Material
NTE Electronics, Inc 04-SCW5-10OR	Self Wrap	Slit Harness	6 mm	0.236 in	10 ft	3.05 m	Abrasion Resistant	0.197 in	5 mm	150 °C	-50 °C	Polyester (PES)
NTE Electronics, Inc 04-SCW5C-OR	Self Wrap	Slit Harness	6 mm	0.236 in	100 ft	30.48 m	Abrasion Resistant	0.197 in	5 mm	150 °C	-50 °C	Polyester (PES)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Self Wrap X 10.00' (3.05m) Orange
