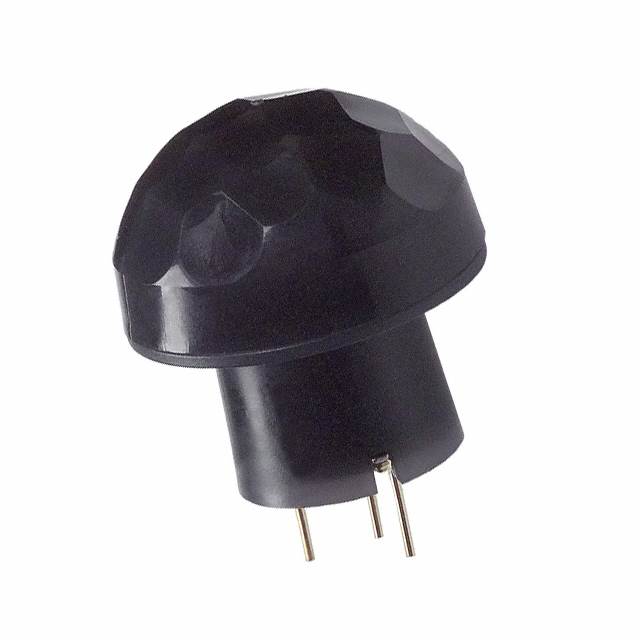

AMN14111
ActivePanasonic Electric Works
SENSOR MOTION DIG 10MM 5V BK PCB
Deep-Dive with AI
Search across all available documentation for this part.
AMN14111
ActivePanasonic Electric Works
SENSOR MOTION DIG 10MM 5V BK PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMN14111 |
|---|---|
| Detection Pattern | 10 m |
| Features | Black, Long Distance Lens |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Cylinder |
| Sensor Type | PIR (Passive Infrared) |
| Trigger Type | Internal |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 23.35 | |
| 10 | $ 19.46 | |||
| 25 | $ 17.24 | |||
| 100 | $ 16.68 | |||
| 450 | $ 15.57 | |||
Description
General part information
AMN141 Series
Sensor PIR (Passive Infrared) 394" (10m) 32.8' Long Distance Lens, Black Cylinder
