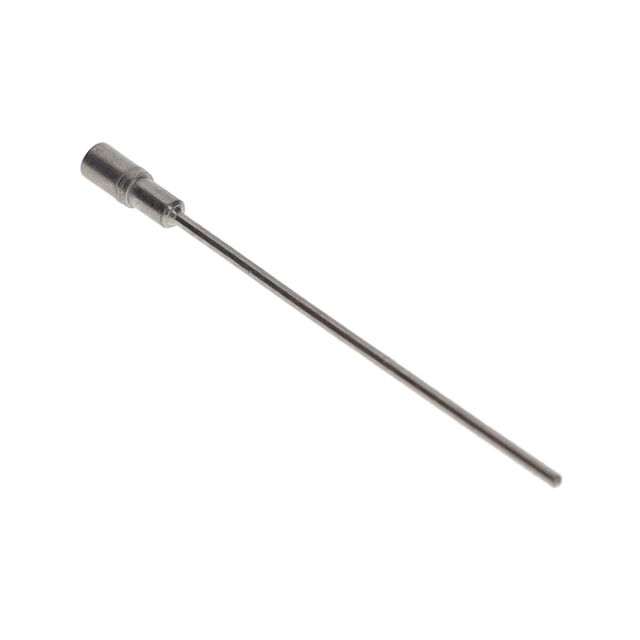

8866-0-15-80-43-27-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
8866-0-15-80-43-27-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8866-0-15-80-43-27-04-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.025 " |
| Accepts Pin Diameter [Max] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.015 " |
| Accepts Pin Diameter [Min] | 0.38 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Length - Overall [x] | 0.94 in |
| Length - Overall [x] | 23.88 mm |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Tail Diameter [diameter] | 0.02 in |
| Tail Diameter [diameter] | 0.51 mm |
| Tail Type | Standard Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.49 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.24 | |||
| 50 | $ 1.21 | |||
| 100 | $ 1.16 | |||
| 250 | $ 1.05 | |||
| 500 | $ 0.96 | |||
| 1000 | $ 0.83 | |||
| 3000 | $ 0.77 | |||
Description
General part information
8866-0 Series
Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
