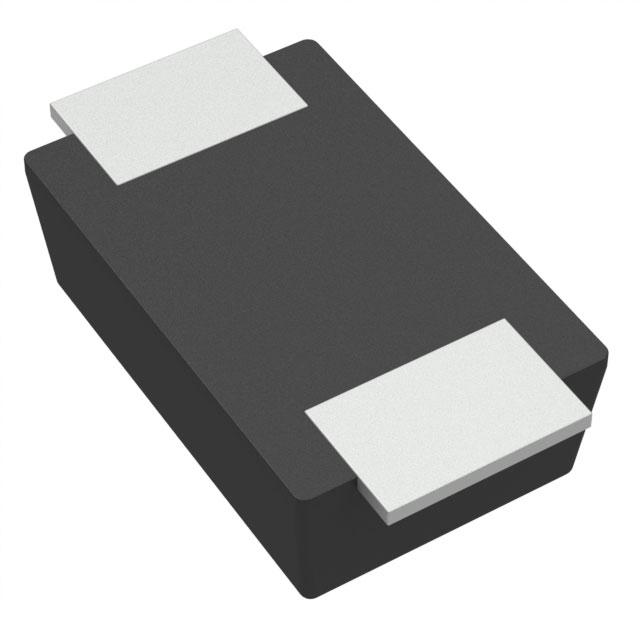

SDT3U40P1-7

Active

Diodes Inc

3A TRENCH SCHOTTKY BARRIER RECTIFIER

Search across all available documentation for this part.

Active

Diodes Inc

3A TRENCH SCHOTTKY BARRIER RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	SDT3U40P1-7

Capacitance @ Vr, F	320 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	POWERDI®123
Speed	200 mA, 500 ns
Supplier Device Package	PowerDI™ 123
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	500 mV

3A Trench Schottky Barrier Rectifier

Part	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Current - Average Rectified (Io)	Speed	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Mounting Type	Package / Case	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]
Diodes Inc SDT3U40P1-7	200 µA	320 pF	3 A	200 mA 500 ns	Schottky	150 °C	-55 °C	PowerDI™ 123	Surface Mount	POWERDI®123	500 mV	40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

For use in low-voltage, high-frequency inverters, freewheeling, DC-DC converters, and polarity applications.
