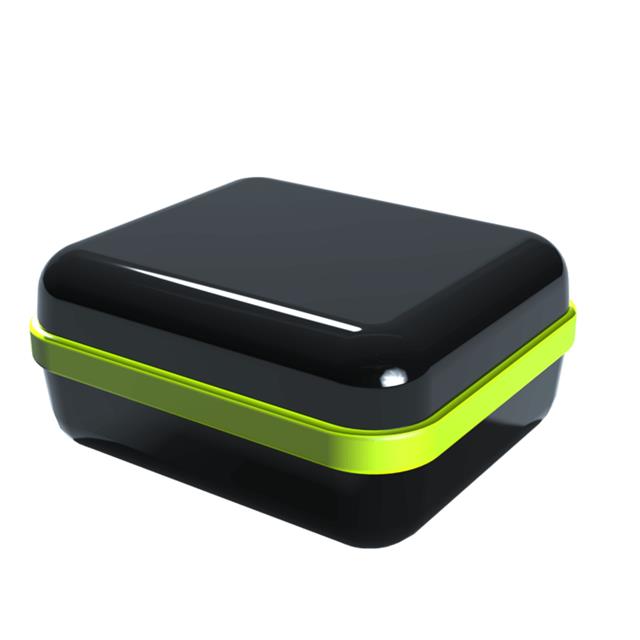

CX27ABKANG

Active

Serpac

ENCL IP67 BLK 1.68"X1.45"X0.81"

Search across all available documentation for this part.

Active

Serpac

ENCL IP67 BLK 1.68"X1.45"X0.81"

Technical Specifications

Parameters and characteristics for this part

Specification	CX27ABKANG

Area (L x W)	2.43 in²
Area (L x W)	15.7 cm²
Color	Black, Neon Green
Container Type	Enclosure
Design	Cover Included, Hand Held
Height [z]	0.81 in
Height [z]	20.57 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-2
Ratings	NEMA 4X, IP67, 13, 12
Size / Dimension [x]	42.67 mm
Size / Dimension [x]	1.68 "
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.83 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Thickness	Thickness	Area (L x W)	Area (L x W)	Container Type	Color	Height [z]	Height [z]	Design
Serpac CX27ABKABL	Plastic Polycarbonate	UL94 V-2	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Enclosure	Black Blue	0.81 in	20.57 mm	Cover Included Hand Held
Serpac CX27ABKANG	Plastic Polycarbonate	UL94 V-2	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Enclosure	Black Neon Green	0.81 in	20.57 mm	Cover Included Hand Held
Serpac CX27ABKAOR	Plastic Polycarbonate	UL94 V-2	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Enclosure	Black Orange	0.81 in	20.57 mm	Cover Included Hand Held
Serpac CX27ABKABK	Plastic Polycarbonate	UL94 V-2	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Enclosure	Black	0.81 in	20.57 mm	Cover Included Hand Held
Serpac CX27ABKANO	Plastic Polycarbonate	UL94 V-2	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Enclosure	Black Neon Orange	0.81 in	20.57 mm	Cover Included Hand Held
Serpac CX27ABKAYL	Plastic Polycarbonate	UL94 V-2	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X	2.03 mm	0.08 "	2.43 in²	15.7 cm²	Enclosure		0.81 in	20.57 mm	Cover Included Hand Held

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.49

General part information

Enclosure Plastic, Polycarbonate Black, Neon Green Hand Held, Cover Included 1.680" L x 1.450" W (42.67mm x 36.83mm) X 0.810" (20.57mm)
