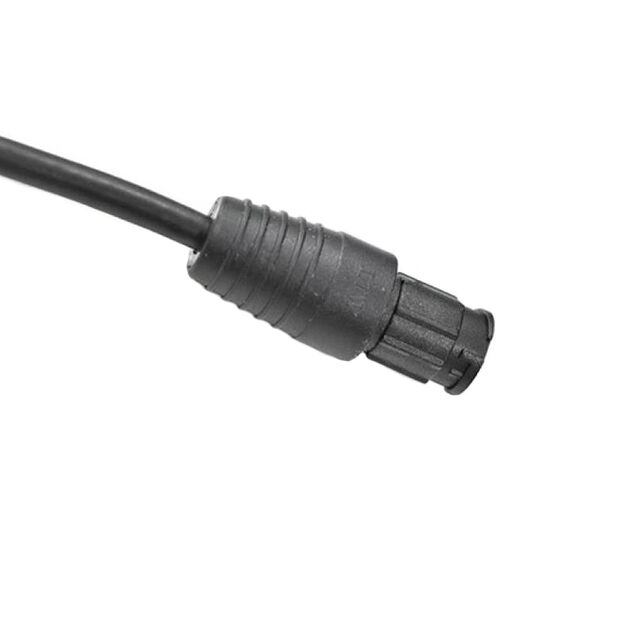

BBD-06BMFM-LL7A05

Active

Amphenol LTW

CERES, STANDARD SIZE, PLASTIC, 10A+5A, 06 PINS, MALE CONNECTOR, FEMALE CONTACT, STRAIGHT, 2 POINTS LOCK, OVERMOLDED, LENGTH 5000

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, PLASTIC, 10A+5A, 06 PINS, MALE CONNECTOR, FEMALE CONTACT, STRAIGHT, 2 POINTS LOCK, OVERMOLDED, LENGTH 5000

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-06BMFM-LL7A05

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	6
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	B
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Shielded
Usage	Industrial Environments

Part	1st Connector Type	1st Connector Number of Positions Loaded	Cable Type	Color	1st Connector Mounting Type	Length [x]	Length [x]	2nd Connector Type	Cable Material	1st Connector Gender	Usage	Ingress Protection	Assembly Configuration	1st Connector Orientation [custom]	Shielding	1st Connector Shell Size - Insert	1st Connector Number of Positions
Amphenol LTW BBD-06BMFM-LL7A05	Plug	All	Round	Black	Free Hanging (In-Line)	1.64 ft	500 mm	Wire Leads	Polyvinyl Chloride (PVC)	Female Sockets	Industrial Environments	IP67 - Dust Tight Waterproof	Standard	Keyed	Shielded	B	6
Amphenol LTW BBD-06BMFM-LL7A10	Plug	All	Round	Black	Free Hanging (In-Line)			Wire Leads	Polyvinyl Chloride (PVC)	Female Sockets	Industrial Environments	IP67 - Dust Tight Waterproof	Standard	Keyed	Shielded	B	6
Amphenol LTW BBD-06BMFM-LL7A02	Plug	All	Round	Black	Free Hanging (In-Line)	6.56 ft	2 m	Wire Leads	Polyvinyl Chloride (PVC)	Female Sockets	Industrial Environments	IP67 - Dust Tight Waterproof	Standard	Keyed	Shielded	B	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Shielded 1.64' (500.00mm)

Technical documentation and resources

No documents available
