YK3030523000G

Active

AMPHENOL ANYTEK

CONN BARRIER STRIP 5CIRC 0.3"

Deep-Dive with AI

Search across all available documentation for this part.

YK3030523000G

Active

AMPHENOL ANYTEK

CONN BARRIER STRIP 5CIRC 0.3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.89
		10	$ 1.43
		25	$ 1.33
		50	$ 1.19
		100	$ 1.16
		250	$ 1.02
		500	$ 0.93
		1995	$ 0.79
		5985	$ 0.74

Description

General part information

YK303 Series

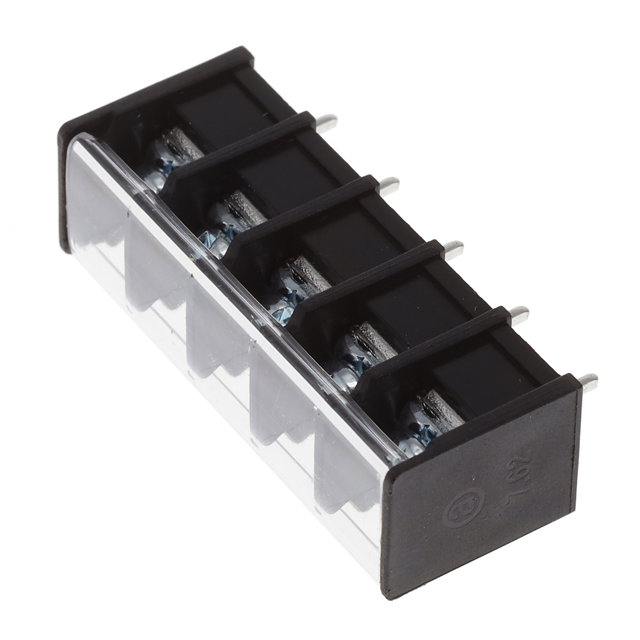

5 Circuit 0.300" (7.62mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YK3030523000G	YK303 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	15 A	15 A
Material - Insulation	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Circuits	5	2 - 20
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	5	2 - 20
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.3 in	0.3 in
Pitch [x]	7.62 mm	7.62 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	14 AWG	14 AWG

YK303 Series

CONN BARRIER STRIP 12CIRC 0.3"

Part	Mounting Type	Voltage Rating	Bottom Termination	Terminal Screw Material	Material - Insulation	Color	Material Flammability Rating	Current Rating (Amps)	Barrier Type	Number of Circuits	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Terminal Screw Finish	Terminal Block Type	Top Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch [x]	Pitch [x]
AMPHENOL ANYTEK YK3031223000G	Through Hole	300 VDC	PC Pin	Steel	Thermoplastic	Black	UL94 V-0	15 A	2 Wall (Dual)	12	14 AWG	22 AWG	12	Zinc	Barrier Block	Screws with Captive Plate	-40 °C	115 °C	1	0.3 in	7.62 mm
AMPHENOL ANYTEK YK3032003000G	Through Hole	300 VDC	PC Pin	Steel	Thermoplastic	Black	UL94 V-0	15 A	2 Wall (Dual)	20	14 AWG	22 AWG	20	Zinc	Barrier Block	Screws with Captive Plate	-40 °C	115 °C	1	0.3 in	7.62 mm
AMPHENOL ANYTEK YK30305030J6G	Through Hole		PC Pin		Thermoplastic	Black	UL94 V-0		2 Wall (Dual)	5			5		Barrier Block	Screws with Captive Plate			1	0.3 in	7.62 mm
AMPHENOL ANYTEK YK3030903000G	Through Hole	300 VDC	PC Pin	Steel	Thermoplastic	Black	UL94 V-0	15 A	2 Wall (Dual)		14 AWG	22 AWG	9	Zinc	Barrier Block	Screws with Captive Plate	-40 °C	115 °C	1	0.3 in	7.62 mm
AMPHENOL ANYTEK YK3031523000G	Through Hole	300 VDC	PC Pin	Steel	Thermoplastic	Black	UL94 V-0	15 A	2 Wall (Dual)	15	14 AWG	22 AWG	15	Zinc	Barrier Block	Screws with Captive Plate	-40 °C	115 °C	1	0.3 in	7.62 mm
AMPHENOL ANYTEK YK3031303000G	Through Hole	300 VDC	PC Pin	Steel	Thermoplastic	Black	UL94 V-0	15 A	2 Wall (Dual)	13	14 AWG	22 AWG	13	Zinc	Barrier Block	Screws with Captive Plate	-40 °C	115 °C	1	0.3 in	7.62 mm
AMPHENOL ANYTEK YK30303030J6G	Through Hole		PC Pin		Thermoplastic	Black	UL94 V-0		2 Wall (Dual)	3			3		Barrier Block	Screws with Captive Plate			1	0.3 in	7.62 mm
AMPHENOL ANYTEK YK3030523000G	Through Hole	300 VDC	PC Pin	Steel	Thermoplastic	Black	UL94 V-0	15 A	2 Wall (Dual)	5	14 AWG	22 AWG	5	Zinc	Barrier Block	Screws with Captive Plate	-40 °C	115 °C	1	0.3 in	7.62 mm
AMPHENOL ANYTEK YK30315030J6G	Through Hole		PC Pin		Thermoplastic	Black	UL94 V-0		2 Wall (Dual)	15			15		Barrier Block	Screws with Captive Plate			1	0.3 in	7.62 mm
AMPHENOL ANYTEK YK3030423000G	Through Hole	300 VDC	PC Pin	Steel	Thermoplastic	Black	UL94 V-0	15 A	2 Wall (Dual)	4	14 AWG	22 AWG	4	Zinc	Barrier Block	Screws with Captive Plate	-40 °C	115 °C	1	0.3 in	7.62 mm
