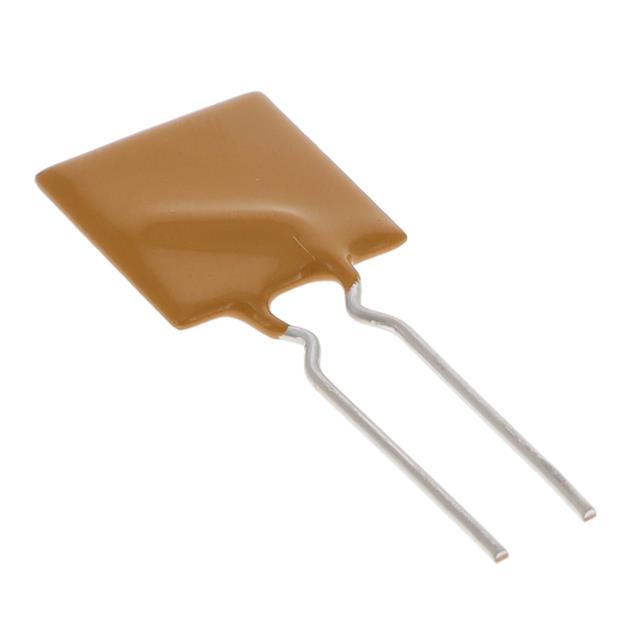

MF-R400-2-14

Active

Bourns Inc.

PTC RESET FUSE 30V 4A RADIAL

Search across all available documentation for this part.

Active

Bourns Inc.

PTC RESET FUSE 30V 4A RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	MF-R400-2-14

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max)	4 A
Current - Max [Max]	40 A
Current - Trip (It)	8 A
Height - Seated (Max) [Max]	0.976 in
Height - Seated (Max) [Max]	24.8 mm
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	10 mOhms
Resistance - Post Trip (R1) (Max) [Max]	0.05 Ohms
Size / Dimension [x]	14.4 mm
Size / Dimension [x]	0.567 "
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Type	Polymeric
Voltage - Max [Max]	30 V

Part	Package / Case	Lead Spacing	Lead Spacing	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Hold (Ih) (Max)	Resistance - Post Trip (R1) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Approval Agency	Voltage - Max [Max]	Current - Trip (It)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Max [Max]
Bourns Inc. MF-R400-2-14	Disc Radial	5.1 mm	0.201 in	Polymeric	0.976 in	24.8 mm	14.4 mm	3 mm	0.118 in	0.567 "	4 A	0.05 Ohms	10 mOhms	cURus TUV	30 V	8 A	Through Hole	85 °C	-40 °C	40 A
Bourns Inc. MF-R400-0-99	Disc Radial	5.1 mm	0.201 in	Polymeric	0.976 in	24.8 mm	14.4 mm	3 mm	0.118 in	0.567 "	4 A	0.05 Ohms	10 mOhms	cURus TUV	30 V	8 A	Through Hole	85 °C	-40 °C	40 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 30V 4 A Ih Through Hole Radial, Disc
