122160RP

Active

Amphenol RF

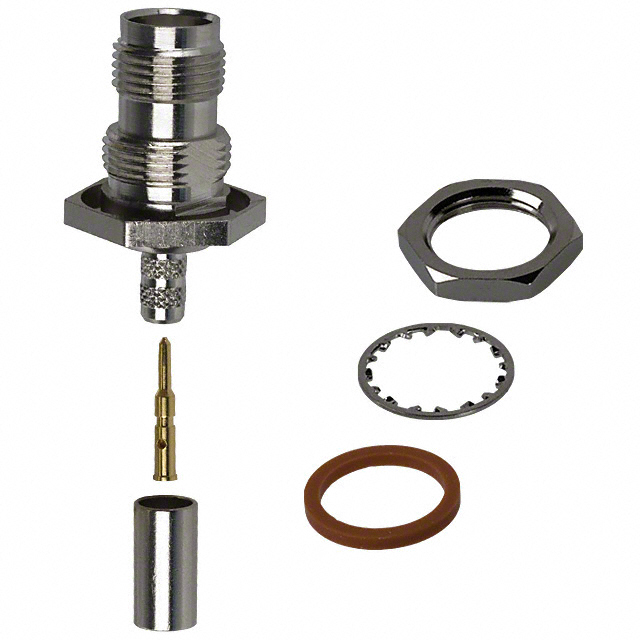

RF / COAXIAL CONNECTOR, TNC COAXIAL, STRAIGHT BULKHEAD JACK, CRIMP, 50 OHM, RG58, RG58C, BRASS

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL CONNECTOR, TNC COAXIAL, STRAIGHT BULKHEAD JACK, CRIMP, 50 OHM, RG58, RG58C, BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	122160RP

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Lockwasher, 1 Contact, 1 Nut, 1 Ferrule, 1 Gasket, 1 Connector
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Cable Group	Body Finish	Includes	Housing Color	Center Contact Plating	Center Contact Material	Mating Cycles	Impedance	Voltage Rating	Frequency - Max [Max]	Mounting Feature	Connector Style	Body Material	Number of Ports	Contact Termination	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shield Termination
Amphenol RF 122160RP	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Nickel	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Silver	Gold	Brass	500	50 Ohms	500 V	11 GHz	Bulkhead - Front Side Nut	RP-TNC	Brass	1	Crimp	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Jack Male Pin	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Panel Mount Crimp
