SI-B8T111560WW
ObsoleteSamsung Semiconductor, Inc.

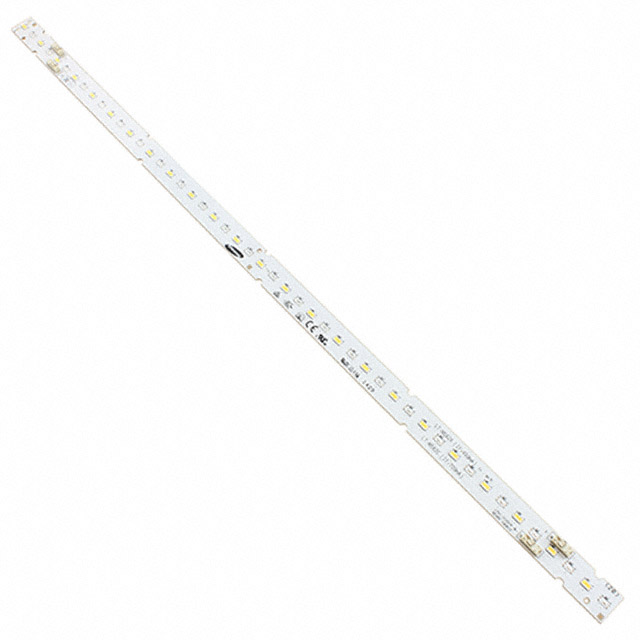

LED MOD LT-M562A LNR STRP 4000K
Deep-Dive with AI
Search across all available documentation for this part.
SI-B8T111560WW
ObsoleteSamsung Semiconductor, Inc.
LED MOD LT-M562A LNR STRP 4000K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SI-B8T111560WW |
|---|---|
| CCT (K) | 4000 K |
| Color | Neutral, White |
| Configuration | Linear Light Strip |
| CRI (Color Rendering Index) | 80 |
| Current - Test | 450 mA |
| Features | With Connector |
| Height [z] | 5.8 mm |
| Lens Type | Flat |
| Lumens/Watt @ Current - Test | 138 lm/W |
| Luminous Flux @ Current/Temperature | 1530 lm |
| Size / Dimension [x] | 560 mm |
| Size / Dimension [y] | 18 mm |
| Temperature - Test | 50 °C |
| Type | LED Module |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 24.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SI-B8T111560WW
LED Lighting COBs Engines Modules LED Module LT-M562A White, Neutral Linear Light Strip
Documents
Technical documentation and resources
No documents available
