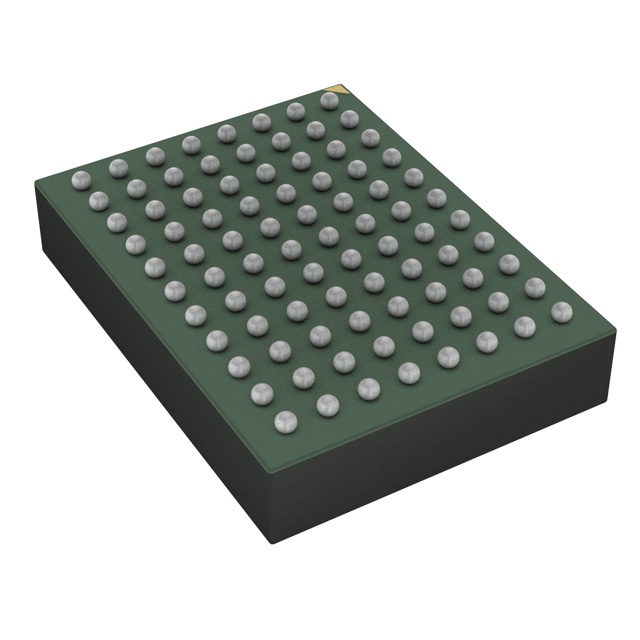

LTM4662IY

Active

Analog Devices

DUAL 15A OR SINGLE 30A DC/DC ΜMODULE REGULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DC2527A-A Demo Manual (Rev.0)+2

LTM4662IY

Active

Analog Devices

DUAL 15A OR SINGLE 30A DC/DC ΜMODULE REGULATOR

Deep-Dive with AI

DocumentsDatasheet DC2527A-A Demo Manual (Rev.0)+2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTM4662IY

Applications	ITE (Commercial)
Current - Output (Max)	15 A
Current - Output (Max)	15 A
Efficiency	96 %
Features	SCP, UVLO, OVP, OCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	88-BBGA Module
Size / Dimension [x]	0.59 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	0.44 in
Size / Dimension [y]	11.3 mm
Size / Dimension [z]	0.25 "
Size / Dimension [z]	6.3 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	20 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.6 V
Voltage - Output 2 [Max]	5.5 V
Voltage - Output 2 [Min]	0.6 V

LTM4662 Series

Dual 15A or Single 30A DC/DC μModule Regulator

Part	Type	Voltage - Output 2 [Max]	Voltage - Output 2 [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Efficiency	Features	Mounting Type	Applications	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Package / Case	Power (Watts)
Analog Devices LTM4662IY	Non-Isolated PoL Module	5.5 V	0.6 V	125 °C	-40 °C	0.59 in	15 mm	0.44 in	0.25 "	11.3 mm	6.3 mm	4.5 V	2	5.5 V	0.6 V	96 %	OCP OVP SCP UVLO	Surface Mount	ITE (Commercial)	20 V	15 A	15 A	88-BBGA Module
Analog Devices LTM4662MPY	Non-Isolated PoL Module	5.5 V	0.6 V	125 °C	-55 °C	0.59 in	15 mm	0.44 in	0.25 "	11.3 mm	6.3 mm	4.5 V	2	5.5 V	0.6 V	96 %	Adjustable Output Remote On/Off Remote Sense	Surface Mount	ITE (Commercial)	20 V	15 A	15 A	88-BBGA Module	82.5 W
Analog Devices LTM4662EY#PBF	Non-Isolated PoL Module	5.5 V	0.6 V	125 °C	-40 °C	0.59 in	15 mm	0.44 in	0.25 "	11.3 mm	6.3 mm	4.5 V	2	5.5 V	0.6 V	96 %	OCP OVP SCP UVLO	Surface Mount	ITE (Commercial)	20 V	15 A	15 A	88-BBGA Module
Analog Devices LTM4662MPY#PBF	Non-Isolated PoL Module	5.5 V	0.6 V	125 °C	-40 °C	0.59 in	15 mm	0.44 in	0.25 "	11.3 mm	6.3 mm	4.5 V	2	5.5 V	0.6 V	96 %	Adjustable Output Load Sharing Remote Sense	Surface Mount	ITE (Commercial)	20 V	15 A	15 A	88-BBGA Module
Analog Devices LTM4662IY#PBF	Non-Isolated PoL Module	5.5 V	0.6 V	125 °C	-40 °C	0.59 in	15 mm	0.44 in	0.25 "	11.3 mm	6.3 mm	4.5 V	2	5.5 V	0.6 V	96 %	OCP OVP SCP UVLO	Surface Mount	ITE (Commercial)	20 V	15 A	15 A	88-BBGA Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 73.78
		10	$ 56.99
		25	$ 56.90

Description

General part information

LTM4662 Series

The LTM4662 is a complete dual 15A output switching mode DC/DC power supply. Included in the package are the switching controller, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 20V, the LTM4662 supports two outputs each with an output voltage range of 0.6V to 5.5V, set by external resistors. Its high efficiency design delivers up to 15A continuous current for each output. Only a few input and output capacitors are needed.The device supports frequency synchronization, multiphase operation, high efficiency light load operation and output voltage tracking for supply rail sequencing and has an on-board temperature diode per channel for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage and overcurrent protection. The power module is offered in a small footprint and thermally enhanced 11.25mm × 15mm × 5.74mm BGA package. The LTM4662 is available with SnPb or RoHS compliant terminal finish.APPLICATIONSPoint-of-Load Power SuppliesTelecom and Networking EquipmentIndustrial and Medical Equipment
